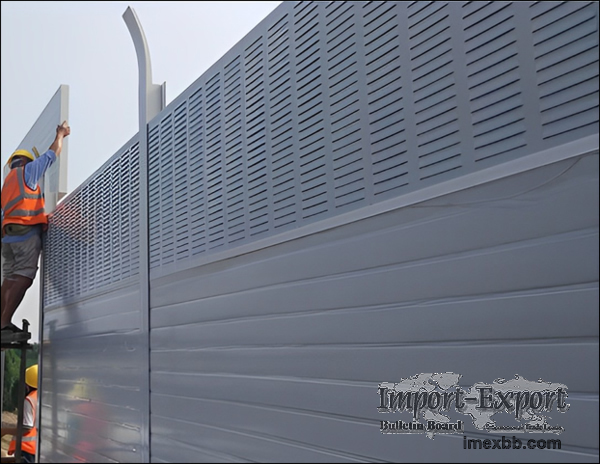

Portable Acoustic Panel Noise Barriers

Portable Acoustic Noise Barrier Temporary Fencing for Construction Site
Frishine supplies high quality Noise Barrier Panels for construction site noise
reduction and control of noise pollution caused by construction activities.
Modular panels consist of a sound-absorbing layer sandwiched between two rigid
outer metal sheet layers. The outer layers reflect sound waves back towards the
source, while the inner material traps and dissipates the sound energy,
effectively reducing noise transmission.

Materials
Filling material for noise absorption: The core of the noise barrier panel is
typically made from high-density vinyl, polyethylene, or fiberglass with
excellent sound absorption and insulation properties.
Panels: The acoustic panels are encased in metal frame of aluminum or
galvanized steel, to ensure durability and structural integrity.

Features
Easy Installation and Removal: Modular design allows for quick assembly and
disassembly, making the panels ideal for temporary use on construction sites.
Superior Acoustic Performance:
Constructed from high-quality sound-absorbing materials, including mass-loaded
vinyl, foam, and advanced composites, our noise barrier panels excel in
reducing noise transmission, protecting surrounding areas from excessive sound
levels.
Weather Resistant: Made from materials that resist corrosion, UV damage, and
harsh weather conditions, our acoustic panels ensures long-term durability and
reliability of our noise barrier solutions.
Standards
Our noise barrier systems include: sound-absorbing perforated panels and
soundproofing panels, supported by posts and base plates for installation.
Noise Barrier Panels can be supplied with Vision Panels, according to EN1793 &
EN1794 European standards.
Manufactured meeting or exceeding industry standards for sound reduction,
safety, and environmental impact.

Noise Barrier Panels – Specifications
Common range
Panel sizes: 4 feet x 8 feet to 10 feet x 20 feet. Custom sizes available to
fit specific project requirements.
Panel Thickness: From 2 inches to 4 inches, depending on the level of noise
reduction required.
Sound Reduction Coefficient (SRC): Varies depending on materials and
construction, with higher ratings indicating greater sound reduction
capabilities.

Export Specifications
Noise reduction panel and corrugated steel fencing
Metal Noise Reduction panel – 2000mm X 750mm X 33mm thickness
Metal Noise Reduction panel – 2000mm X 500mm X 33mm thickness
CORRUGATED STEEL – SINGLE SIDE, OFF WHITE x 1000mm width x 2400mm length

Bi-absorbent Noise Barrier Panels for Sound Barrier
Bi-absorbent Noise Barrier Panels with vision panel
Specification:
Bi- absorbent noise barrier panel with size of 3 mtr width x 3.5m height, with
EN1793 &v EN 1794 European standards.
Technical Specifications: Noise barrier shall compose of certified and tested
panels according to the requirements of the European Standards.

Material specifications:
Posts: UC 152 type welded to a 20mm thk. base plate with all required gussets,
cleats etc duly hot dip galvanized with a coat of primer and two coats of epoxy
finish paint.
Posts are fastened to the flyover with M 20 anchors and chemical grout.

Construction: Bi–absorbent Aluminum perforated shells of 1.2 mm thk. duly
assembled with self-drilling GI screws. Two slabs of water repellent
mineral/rock wool of 40mm thk. and 90 kg/Cu.m density is sandwiched inside the
Aluminum panel, duly separated by a 1.20 mm thick aluminum sheet separator to
induce bi-absorbent effect. Aluminum panels shall be powder coated.

Sound proofing transparent panels 15mm thk. PMMA sheets (of size 3m x 0.5 m)
duly encased in a bolted steel frame with EPDM rubber gasket. The steel frame
is to be hot dip galvanized with a coat of primer and two coats of epoxy finish
paint.

Portable Noise Barrier Fencing
Noise barrier fencing panel wall
This fencing barrier is designed for efficient noise control for construction
sites, events and other sound reduction applications.

Base Material: The core of our fencing combines vinyl sound insulation felt
with a layer of sound-absorbing wool, available in thicknesses of 1.5mm, 2mm,
or 3mm.
Exterior Surface: The front is finished with a waterproof and UV-resistant PVC.
Interior Lining: Fiberglass fabric adding an extra layer of sound insulation.
Dimensions: Standard sizes range from 1-2 meters in width by 2-3 meters in
height, with customization options available.
Thickness: 20mm and 25mm.
Construction: Available in designs of 3 and 4 layers for enhanced acoustic
performance.
Sound Reduction: Capable of reducing noise by 15db to 27db.
Noise Barrier Panels for Airports:
Our specialized Noise Barrier Panels can be used to provide effective temporary
noise control for airports.
Construction Project:

Perforated Sheet Noise Barrier Fence

Panel Size: Each panel 518mm in width, 120mm in depth, and 1000mm in height.
Total Panels: 580 panels for temporary noise enclosure.
