Porous PTFE Coated Fabrics

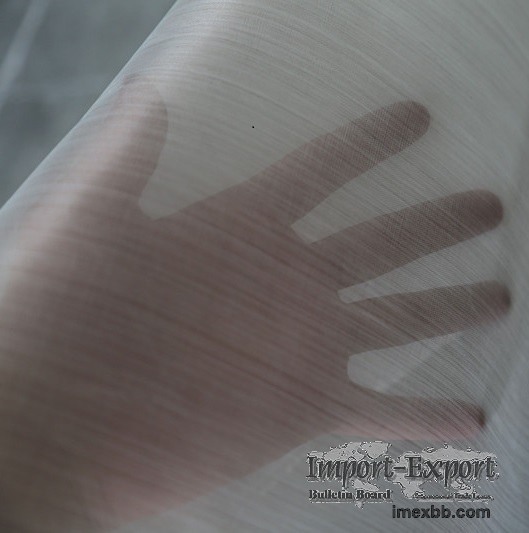

The Details of Porous PTFE Coated Fabric Sheet
Porous PTFE coated fabric sheet is made of tear-resistant glass fabric cloth
(Teflon Fabric Sheet) impregnated with specially formulated PTFE resin. The
fabric is specially controlled during the impregnating process to be breathable
while at the same time, maintaining its superior non-stick property. Woven
fiberglass offers excellent mechanical property, porous surfaces allow excess
resin, volatiles, and trapped air to escape into the breather during the curing
process. The material is with visible texture makes it perfect as an embossment
sheet during the manufacture of polymers and composite fabrication. Mutiflon
offers porous teflon sheet in various thicknesses from 30 microns to 900
microns.

The Advantage of Porous PTFE Coated Fabric Sheet
Unique permeability
Nonstick surface, superior release property
Provide release from all conventional resin
Continuous working in temperature to 260℃/550°F
Chemicals corrosion resistant
Controlled permeability
High tensile strength
Flexible and dimension stable
Tear-resistant and abrasion resistance
Textured surface, suitable to the application requires grains impact
Microwave, infrared, and UV resistant

The Specifications of Porous PTFE Coated Fabric Sheet
Product code Color Max Width Thickness Weight PTFE Content
Tensile Strength(N/cm)
(mm) (mm) (g/m2) (%)
MT006P Beige 1250 0.06 66 32 100/92
MT013P Brown 1250 0.115 138 20 164/160
MT020P Brown 2600 0.2 285 26 460/430
MT032P Brown 2600 0.32 360 25 400/360

The Applications of Porous PTFE Coated Fabric Sheet
Manufacture of silicone rubber sheet
Plastic foams, sponge, and rubber curing
Composite aircraft and wind turbine blade mold release
Release sheets for fabricating glass-resin structures
As of release sheet or made into conveyor belt used during hot pressing process
in the production of carbon fiber panels such as carbon fiber laptop
Release sheets for fabricating glass-resin structures
Release sheets for fabricating Teflon Fiberglass Sheet
Visible heat seal impressions

Mutiflon provides heat-resistant Teflon tape with silicone adhesive which
resist 260℃ and acrylic adhesive which withstand 170℃ on one side or both
sides. Our PTFE adhesive tape of various types are available here. Don’t
hesitate to consult us.

Minimum Order: 10 square metres
