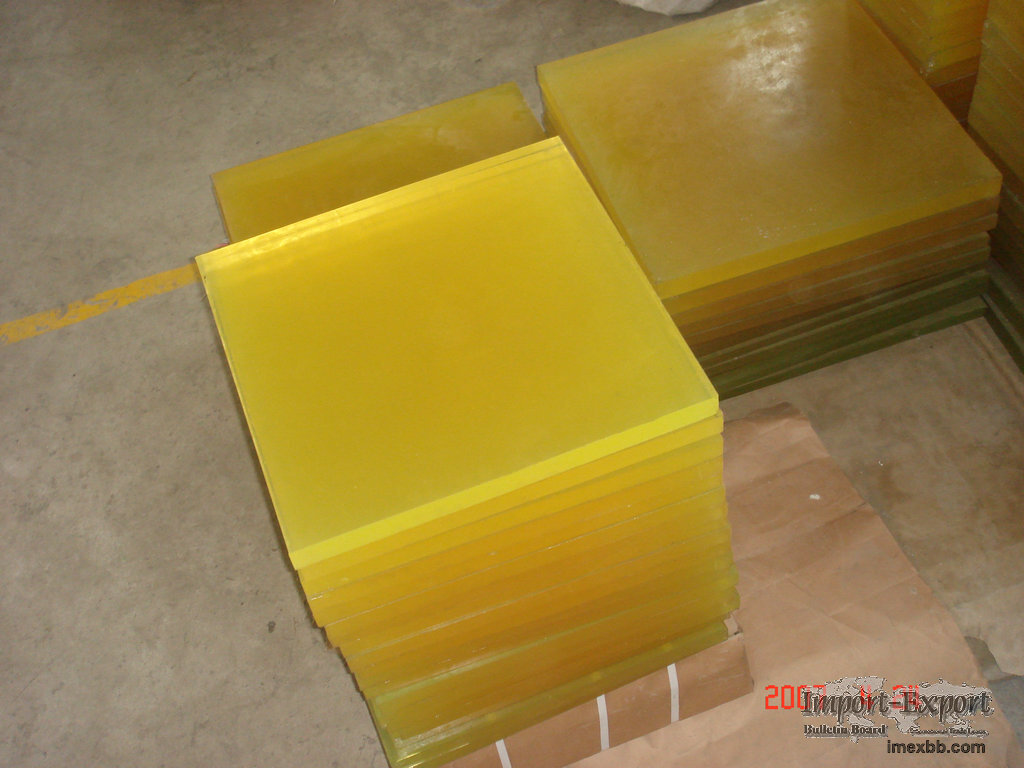

Polyurethane Sheet, PU sheet

Description: the polyurethane elastomeric is a new material of polymer
synthetic between rubber and plastic. It has both high strength of plastic and
high elasticity of rubber. Its characteristics are: 1, a wide range of
hardness. It still has rubber elongation and resilience at high hardness. The
polyurethane elastomeric has a hardness range of Shore A10-D80. 2. high
strength. At rubber hardness, the tensile strength, tear strength and load
carrying capacity are much higher than general rubber material. At high
hardness, its impact strength and flexural strength are much higher than
plastic material. 3, wear-resistant. Its wear resistance is very outstanding,
generally in the range of 0.01-0.10cm3/1.61km, about 3-5 times than rubber
material. 4, oil resistant. The polyurethane elastomeric is a highly polar
polymer compound which has low affinity with non-polar mineral oil and is
hardly eroded in fuel oil and mechanical oil. 5, good resistance to oxygen and
ozone. 6, excellent vibration absorption performance, can do damping and
buffering. In the mold manufacturing industry, it replaces rubber and
springs.7, has good low temperature performance. 8, radiation resistance.
Polyurethane is highly resistant to high energy radiation and has satisfactory
performance at 10-10 deg radiation dose. 9, with good machining performance.



The polyurethane sheet, pu sheet are made by mould cast or centrifuge rotor
with high quality polyester or polyether material. It is very good performance
of chemic erode resistant, impregnant resistant, ozone resistant, radiation
resistant, aging resistant, hydrolyze resistant, and high tensile strength,
tear resistant, high impact resistant, high bend strength and low compression
set etc. The abrasion resistant is 5 multiple more than pure natural rubber,
and the oil resistant is 3-5 multiple more than NBR rubber, and have high
elasticity 65% with prominent compression resistant at high temperature. wider
revise hardness range of 75-95shore A, very good viscidity with metal material,
it is a new macromolecule material with fast evolutive now. Apply to military,
mine, oil field, chemical, printing, punch, paper making, shoe making, spin,
auto industrial etc.



Specifications:

materia , l: virgin CPU of polyether or polyester

color: clear yellow, transparent, black, red, brown, white, blue, green etc.

surface: smooth/smooth

tensile strength: 25-50Mpa

elasticity impact: >25%

hardness: 75-95shore A

elongation: 400%-600%

density: 1.15-1.25g/cm3

tear strength: 35-155KN/m

akron abrasion loss:<0.05cm3/1.61km

compression set (22h*70°C):<10%

working temperature: 120°C(maximum)

thickness: 0.1-60mm

width: 10-1500mm

length: 500-4900mm

standard size:

0.1-3.0mm x 1.00m x 50kgs

0.1-3.0mm x 1.22m x 50kgs

0.1-3.0mm x 1.37m x 50kgs

1-20mm x 0.3m x 3.0m

1-20mm x 0.6m x 3.0m

1-20mm x 0.4m x 4.0m

1-20mm x 0.5m x 4.0m

1-20mm x 0.6m x 4.0m

1-20mm x 0.8m x 4.0m

1-20mm x 1.0m x 4.0m

1-20mm x 1.2m x 4.0m

1-20mm x 1.5m x 4.9m

10-60mm x 0.3m x 0.3m

10-60mm x 0.4m x 0.4m

10-60mm x 0.5m x 0.5m

10-60mm x 0.6m x 0.6m

10-60mm x 0.5m x 1.0m

10-60mm x 0.6m x 1.2m

10-60mm x 1.0m x 1.0m

10-60mm x 1.0m x 2.0m

OEM & customized size are agreed

packing in cartons, pallets or crates

***when you enquiry, pls confirm the material, color, hardness, size and
quantity***

Minimum Order: 200 kilograms
