Polariscope viewing stress in Transparent Glass, Crystal and Plastic

Polariscope for transparent Quartz, glass and plastic
(Ref.PSV-202)

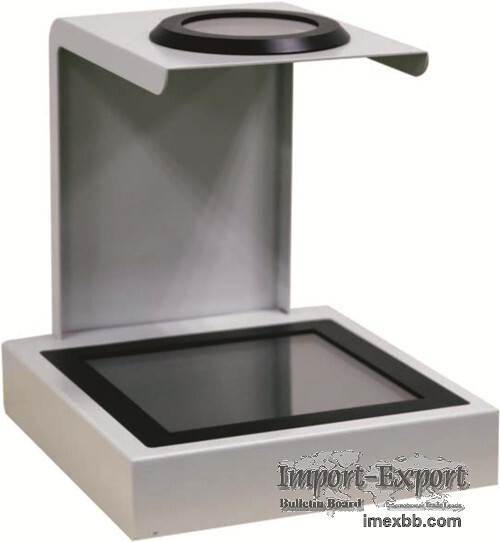

The Polariscope ( Ref.PSV-202) has been designed to observe and analyze the
internal stress of transparent glass and plastic products .

Detecting object
1. transparent glass products with complex construction.
such as : penicillin bottle, ampoule , mobile phone cover, lighting tube, solar
glass ,automobile glass,sapphire, glass container , glass handicraft
2. transparent plastic samples
plastic bottle , cosmetic bottle , beverage bottle, plastic tray, plastic film
3.Crystaline material

Specifications
Optical path difference of full-wave plate : 560nm
Viewing field: 200mm*200mm
Measuring height :236mm
Overall size: 310*285*350mm
Voltage: 24VDC( with a AC/DC adaptor )
Light source: White fluorescent lamp
Weight:8KG

Minimum Order: 1 pieces
