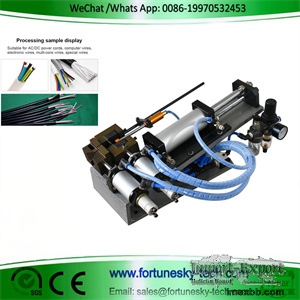

Pneumatic Multi Conductor Cable Jacket Stripping Machine

The LL-Series Pneumatic Cable Stripper: A Versatile Solution for Multi-Conductor Cable
Stripping
The LL-Series Pneumatic Cable Stripper is a family of powerful and versatile machines
designed for efficient and precise removal of jackets from various multi-conductor cables.
These user-friendly machines cater to a wide range of applications, including stripping AC/DC
cables, computer cords, and power cords.

Key Features:

Broad Cable Compatibility: The LL-Series offers a variety of models (LL-305, LL-310, LL-315,
LL-330, LL-416, LL-520) to accommodate different cable sizes, with maximum stripping
diameters ranging from 7mm to 40mm.
Precise and Clean Stripping: Delivers clean and damage-free stripping of inner conductors,
ensuring the integrity of your processed cables.
Effortless Operation: Features a user-friendly design for convenient and efficient operation,
simplifying cable stripping tasks.
Technical Specifications:

Model No.: LL-305, LL-310, LL-315, LL-330, LL-416, LL-520 (depending on stripping diameter
needs)
Stroke: 50mm, 100mm, 150mm, 330mm, 150mm, 500mm (depending on model)
Stripping Diameter (Max): 7mm, 12mm, 18mm, 20mm, 25mm, 40mm (depending on model)
Power Voltage: AC 110V/220V 60Hz/20Hz
Air Pressure: 3-7 Kg/cm2
Force: 31-73kg, 49-115kg, 84-196kg, 84-196kg, 165-300kg, 400kg (depending on model)
Net Weight: 20kg, 25kg, 35kg, 65kg, 45kg, 102kg (depending on model)
Size (mm): Refer to table above for specific dimensions based on model selection.
Cutter Types and Options:

Stripping Cutter (1 set, 2 pieces)
Default Cutter Type:
LL-305: Flat Cutter (suited for flat cable)
Other models: V-Cutter (suited for wire diameter 4.0mm or less)
Optional Cutters:
Flat Cutter (suited for flat cable)
Round Cutter (various sizes for different wire diameters above 4.0mm)
Choosing the Right Model:

For optimal performance, please provide your wire diameter and insulation thickness when
selecting a suitable blade and model from the LL-Series. This information will ensure you get
the most appropriate machine for your specific cable processing needs.

The LL-Series Pneumatic Cable Stripper is a valuable asset for anyone who needs to
efficiently and precisely strip jackets from various multi-conductor cables. This versatile
series offers a range of models to accommodate different cable sizes, delivers clean stripping
results, and features a user-friendly design for effortless operation.

Minimum Order: 1 pieces
