PMG 125kva Cummins Generator

PRODUCT DESCRIPTION
Rated Power 100kWe Cummins Diesel Generator Set Base Type Oil Tank Land Power
Station
1. Reliable power quality: The diesel generator set produced by our company uses
the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine:
Cummins Engine Company was formally established in the United States in 1919. After
more than 100 years of accumulation, Cummins is the world's leading manufacturer of
power equipment, with a power range of 31~3500 horsepower, widely used in
construction machinery, mining machinery, agricultural machinery , ships, oil and
gas fields.The engine block made of high-strength alloy cast iron has better
rigidity, less vibration and lower noise. The four-valve design of each cylinder of
the engine optimizes the air/fuel mixture, and uses advanced technology to optimize
the combustion process, significantly reducing fuel consumption and improving
reliability
2. Reliable generator quality: The diesel generators produced by our company are
equipped with generators with reliable quality and high market holdings, such as ①
Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power
generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system
produced by our company uses the LCD screen controller,Such as: ① deep sea
controller (DSE) ② smartgen controller (smartgen) has the characteristics of high
integration and high management accuracy.
4. All the major components – the engine, alternator,are manufactured and built
by Cummins,This integrated approach means each element of a generator set is
matched to work in harmony from the start.
5. Optional Permanent Magnet Generator (PMG) - Offers enhanced motor starting and
fault clearing short circuit capability.
6. The main components are from American technology with reliable quality
7. Large matching coefficient of unit power and long engine life
8. This Cummins commercial generator set is a fully integrated power generation
system, providing optimum performance, reliability, and versatility for stationary

Gen-set Specifications
Gen-set Model HD-100GF Rated Frequency 50Hz/60Hz
Rated Power 100kWe/125kVA Rated Speed 1500rpm/1800rpm
Standby Power 110kWe/137.5kVA Rated Current 180A(400V)
Rated Voltage 400/440V Weight 1200kg
Fuel Consumption(Rated) 210g/kW•h
Outline Dimension(L×W×H)

2350×820×1350mm
Engine Technical Datasheet
Engine Model QSB5.9-G3 Brand DCEC Cummins
Rated Power 120kW Number of Cylinders 6
Bore×Stroke 102mm×120mm Governor Electronic control(ECU)
Displacement 5.9Liters Lubricant Capacity 16L
Starting method DC24V
Alternator Technical Datasheet
Alternator Model UCI274ES Brand Stamford
Rated Power 100kW Protection Grade IP23
Voltage regulation AVR Excitation brushless PMG
Insulation Grade H Type 3phase 4wire
Control system Technical Datasheet
1,Multi-interface display unit work and alarm state, intuitively clear, LCD
displays the parameters of diesel engines.

2,Microcomputer can be set on the control panel input, output, alarm, delay and
other

3,parameters.Maintenance, manual, automatic and other modes of operation.
Display Data

1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running
TimingAlternator

2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current,
kVA,kW,PF,kVAR,kWh,kVAh,kVARh
Detection and protection function

1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery
Volt,Low water level,Three failed to start alarm

2,Over / under voltage,Over current,Over / under frequency, Over Power, Short
circuit

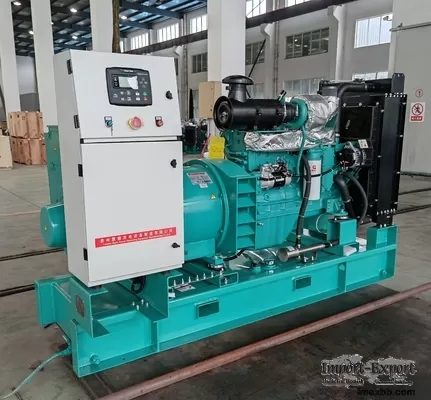

PMG 125kva Cummins Generator 0
