PM70MB2-00-16H IP Video Matrix Switcher, With 16CH Output, Modular Chassis,

PM70MB2-00-16H IP Video matrix switcher, Decoder with 16ch hdmi output @ 64ch
split per hdmi output, Video wall controller, H265/264 IP decoding, Video over
IP, Video split, splicing, cruise, PIP, etc. video wall management.


Description:


PM70MB2-00-16H ip video matrix switcher is a Video Wall controller can decode
Video from RTSP (CVBS, TVI, CVI,AHD, HDMI, SDI), IP cameras, etc. compatible to
H265/264 and ONVIF, could work with most video or audio in the market,
completely meet the requirement the HD IP decoding, reduce the cost of IP CCTV
solution based stream over IP.

The device support intercom function, can realize monitoring, broadcast,
intercom. multi-device cascading can realize large-scale IP video decoding. It
supports one window display, segmenting/splicing/mixing display.

Netclient software could configure video soureces including RTSP, ONVIF,etc.,
with video preview, PTZ control panel, etc. for operataions on PC.

Output HDMI, BNC, SDI, etc.mutiple signal, standalone keyboard is opitional,
very similar like analog operation like 〔1〕〔CAM〕+〔1〕〔MON〕.



Functions:

◆ Support for network media, ONVIF, RTSP data input, video over ip.

◆ Support computer keyboard & Mouse direct input, U Flash storage.

◆ Support BNC (TVI,CVI,AHD or CVBS) / HDMI/HD SDI input for optional,the HDMI
input support 4K.

◆ Modular design, 4RU chassis for 8 cards, besides it, there is 12RU chassis
for 24 cards, 5.4RU chassis with 16 cards, 4ch /2ch HDMI output standalone
available.

◆ Each decoder card supports 2ch HDMI output, every odd output support 4K
resolution.

◆ Each Video Output can identify optimum resolution automatically, or allow
the user to change the output resolution manually. Maximum supported resolution
per card 3840x2160@60Hz.

◆ Support 4K, 1080P, 1080I, 720P, D1 video formats

◆ Support standard H.265 & H.264.

◆ Single module support 2ch 4K or 16ch 1080P or 32ch 720P decoding and
display.

◆ Support video-splitting output, up to 8x8 windows split on one monitor

◆ Support monitor splicing by any size ,splitting, windowing, zooming in & out

◆ Support audio input and output, also monitoring, broadcasting and intercom
functions are supported

◆ Support OSD, title, time and warning messages can overlap on the displayed
video

◆ Compatible with branded IPC without use of streaming media server

◆ Compatible with Onvif 2.4, and RTSP protocols

◆ Matrix Client software could configure all parameter, perfect video wall
management functions.

◆ Video preview & PTZ control on ip matrix software



Specifications

Interface Parameter
HDMI input Optional, 1/4CH HDMI input per card, support 4K video input
HD SDI input Optional, 1CH HD SDI input per card, support 1080p
BNC input Optional, 8CH BNC input per card, support analog, TVI,CVI,AHD
HDMI output 2CH per card, odd port support 4K output
Ethernet 100M/1000M adaptive RJ45 port
Audio input 1ch ,Ф3.5 earphone socket .
Audio output 1ch ,Ф3.5 earphone socket .
alarm output support (rack construction)
USB2.0 support
RS232 support
Video Parameter
network video decoding H.265,H.264
network video input 4K,1080P,1080I,720P,D1
HDMI output resolution 1024×768P@60Hz,1280×720P@60Hz,
1366×768P@60H , z,1920×1080P@30Hz,
3840×2160@30Hz
video decode and display one module support 2CH 4K or 16ch 1080P@30hz or
32ch 720P or 64ch D1
monitor splicing 16 monitor splicing
monitor splitting and display Support 4/9/16/25/32/48/64 splitting and
display
OSD Supports Chinese/English OSD character superposition;
Time display, Monitor No. display.
Support titles overlaying, Maximum 16 titles overlay in one screen, maximum 40
characters per title;
Alarm information display.;
Audio Codec G.711,G.726,ADPCM Audio encode/decode.
On/Mute Supports all channels and single channel quick setting individually.
Audio input one module support 1CH audio encode, it can be set to
open/close audio input.
Management and Maintenance
Basic function
Multi-user login/logout, Maximum supports 72 users online at same time,
operation permission definition; Supports video switching and controlling.

Support Segmentation display mode management.

Automatic inspection, setting and call. Supports rollback playing.







System management and configuration PETNET protocol available, support web
configure, configuration upload and reload, operation permission setting and
management
Maintenance
system log available.

Fault detection and report.

support online updating.

Other
time synchronization interior RTC, it could time automatic synchronization,
offer standard port, to keep sync. To time server inside the system.
alarm input support network alarm input
alarm output one module can provide with 1CH alarm switching value output
and network alarm output
Alarm Processing Multiple alarm event processing mode
Screen control video screen control port available;
best resolution identification support best resolution identification
power supply one module Power supply: DC 12V chassis power supply: AC 220
Power consumption one module 15W
working temperature 0～55℃
working humidity 10%～90%；
structure standard structure design


Applications:

For the surveillance system where there are IP input only, the application
focus on real time surveillance, the output to video wall.
The application could be medium scale surveillance system, such as commercial
building, shopping mall, etc.

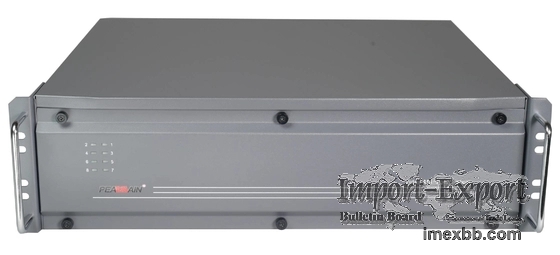

PM70MB2-00-16H IP Video Matrix Switcher, with 16CH Output, modular chassis,
