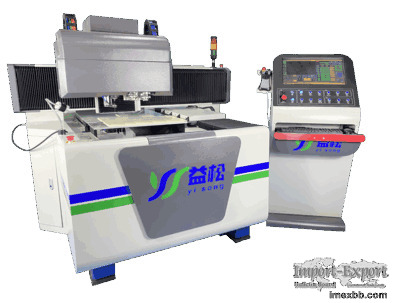

Plywood Eco Die Board CNC Jigsaw Sawing Machine

Main Function:

▸Process 6-22mm plywood

▸Saw blade cutting

▸Milling/router cutting (up and down Synchronous and asynchronous processing)

▸Automatic half bridge, Waste cleaning remove stripping,Bevel processing,
Multi step machining

▸Self-developed control system

▸Processing 2D to 3D simple and fast,No need to spend high salary to hire 3D
program designer

▸Safety protection alarm function;

▸Saw blade/Router anti-blunt alarm function

Main configuration:

▸Energy-saving and stable Yaskawa servo system

▸Import lead screw guide rail, high operation accuracy

▸All accessories use international well-known brand


Main Feature：

▸Energy saving: Yaskawa servo system power consumption very low (less than 1
kilowatt-hour )

▸Environmental protection:No toxic gas and harmful substance.Don’t worry
government keeps checking environmental protection comparing with laser cutting


Quality:

▸Using sawing cutting, high vertical knife slit, no black carbonization

▸Blade no corrosion and no rust, improving die board service life

▸More accurate positioning of the multi-layer board

Cost:only saw blade and milling router consumables,10% cost of the laser
cutting machine

Healthy: Smokeless and tasteless, comfortable working environment



Specification

Model

YS-M1512N YS-M1812N

Occupy Dimension

3800mm *2400mm *1950mm 4400mm *2400mm *1950mm

Effective cutting size

1500mm *1200 mm 1800mm *1200mm

Main Function

plywood

Thickness

3- , 22mm

Cutting Speed

0.5m/m

Knife slit width

0.71 mm/1.05 mm/1.42 mm

Cutting Accuracy

±0.08mm

Data Format

DXF

Control Drive

Yaskawa Servo Control

Transmission

ead screw guide rail

Data Port

COM or LPT

Voltage and power consumption

380V, power saving mode (less than 1 kW·h)

Air Pressure

Customer prepare 0.6MPA (Suggest using 0.8MPA/air compressor with 80L tank
capacity)

Machine Weight

4.5 Ton

Minimum Order: 1 sets
