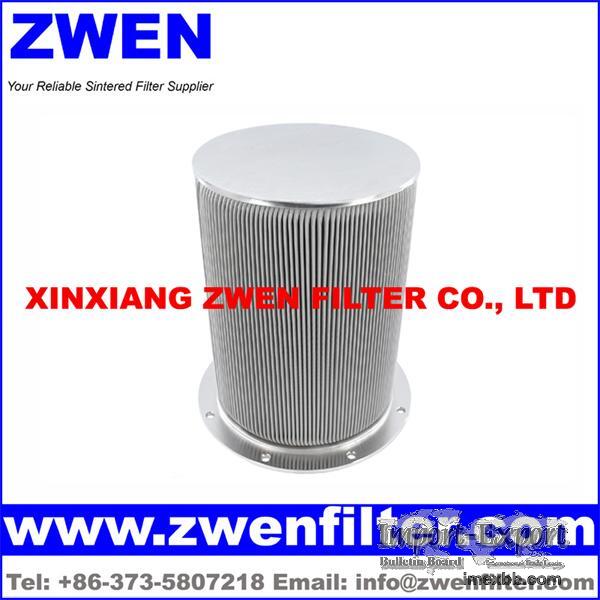

Pleated Wire Mesh Filter Cartridge

Pleated Wire Mesh Filter Cartridge Technical Parameter
Raw Material: SS 316L, SS 304
Filter Rating Range: 1 Micron ~ 300 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm, 150 mm, 300 mm,
400 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016
mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor:
1. DOE
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
7. Flange
8. Special customization

Pleated Wire Mesh Filter Cartridge Feature
1. Pleated wire mesh filter cartridge has large filter area
2. Pleated wire mesh filter cartridge has high flow rate
3. Pleated wire mesh filter cartridge is good for backwash
4. High filter efficiency
5. High mechanical strength
6. High temperature resistance
7. High corrosion resistance
8. Long service life

Application
Polymers filtration, high temperature liquid filtration, high viscosity liquid
filtration, high temperature gases filtration, steam filtration, catalysts
filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink
filtration, water filtration, beverages filtration, resin filtration, detergent
filtration

Minimum Order: 1 pieces
