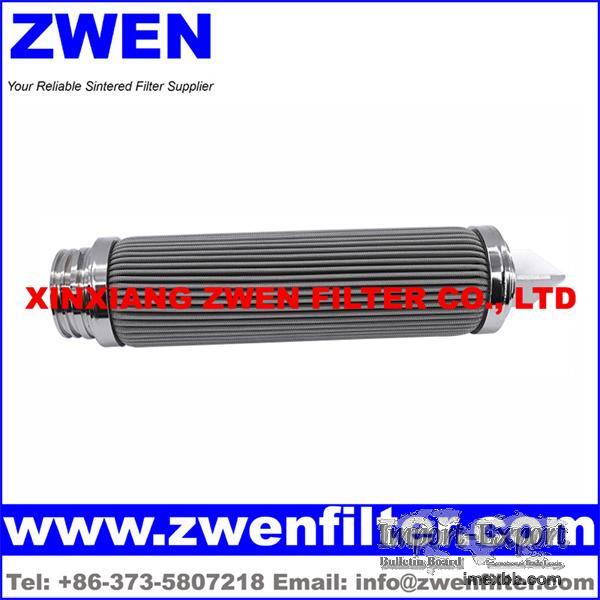

Pleated Metal Filter Element

Pleated Metal Filter Element Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Fiber Felt
Filter Rating Range: 1 Micron ~ 100 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm,
150 mm, 300 mm, 400 mm or others
Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor:
1. DOE
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
7. Flange
8. Special customization

Pleated Metal Filter Element Feature
1. Pleated metal filter element has large filter area
2. Pleated metal filter element has high dirt holding capacity
3. Pleated metal filter element has high porosity
4. High filter efficiency
5. High mechanical strength
6. High temperature resistance
7. High corrosion resistance
8. Washable and Cleanable
9. Long service life

Application
Polymers filtration, high temperature liquid filtration, high viscosity liquid
filtration, high temperature gases filtration, steam filtration, catalysts
filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink
filtration, water filtration, beverages filtration, resin filtration, detergent
filtration

Minimum Order: 1 pieces
