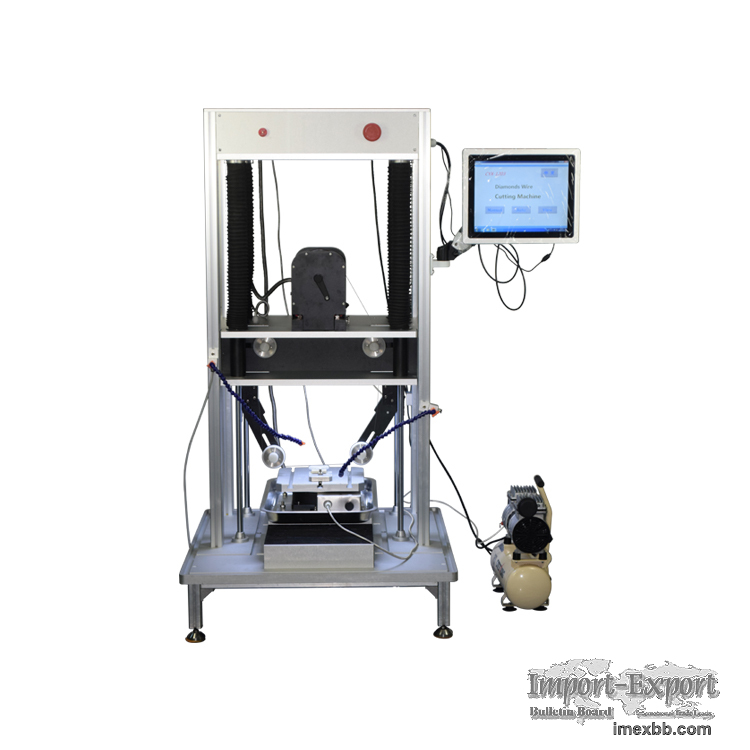

PLC controlled automatic diamond wire cutting machine for 12" crystal

Name Automatic diamond wire cutting machine
Model CY-DWC300-A
Features
1. The cutting size can reach 12". (max)
2. The main motor drives the diamond cutting line to move downward at a constant
speed, and the material is fixed on the worktable to ensure stable cutting.
3. The worktable can be adjusted by 360° rotation manually or through program
control.
4. The pneumatic tensioning system is adopted and imported pneumatic components are
used to make the tensioning force more stable and reliable.
5. PLC program control system and large-size touch screen make the operation simple
and quick.
6. Various tooling fixtures can be designed according to your needs.

Functions
1.Ceramic materials: alumina ceramics, zinc oxide ceramics, zirconia ceramics,
target ceramics, honeycomb ceramics, semiconductor ceramics, conductive ceramics,
non-conductive ceramics, etc;
2. Crystal material: graphite, silicon crystal (solar polysilicon, monocrystalline
silicon), sapphire, alumina crystal, infrared glass crystal, alumina crystal,
silicon carbide crystal, cesium iodide crystal, etc.;
3. Glass materials: chalcogenide glass, optical glass, quartz glass, infrared
glass, glass tube, etc.;
4. Metal materials: iron, aluminum, copper, titanium alloy, magnesium alloy and
other metals and alloys, non-ferrous metals (zinc sulfide, ferrite), etc.;
5. Composite materials: PVC board, carbon fiber composite material, glass fiber
composite material, etc.
6. Rock materials: precise sections of natural rocks, jade, meteorite, Peicui,
agate and other high-value materials; geological optical slices, geological thin
sections (sedimentary rocks, magmatic rocks, metamorphic rocks, ores), etc..
7. Thermoelectric materials: bismuth telluride, lead telluride, silicon germanium
alloy, etc.
8. Infrared optical materials: zinc selenide, zinc sulfide, silicon, germanium and
other crystals
9. Biomedical materials:Bioplasticization specimen sections (human animal organs,
jaw joint sections of soft and hard tissues, implant observation, tooth crown and
bridge, teeth and other histological specimens);Combined sections of soft and hard
tissues in orthopedics department (fresh tissues and hard tissues such as femur,
hip joint and vertebral body, bone histological samples with implants, etc.);
Cardiac and cerebrovascular stent section, stone section and other medical tissue
sections;;

Parameters
1. Power supply: 220 V 50 Hz;
2. Power: < 550W (max);
3. Spindle motor: AC frequency conversion motor, Power 400W;
4. Y, Z, R axis motor: precision stepping motor;
5. Cutting wire speed: 0-8m / s adjustable, digital display;
6. Total length of cutting line: ≤ 150m;
7. Cutting line diameter: ≤ 0.45mm;
8. Y axis travel: ≤ 300 mm, digital display;
9. Z axis travel: ≤ 300 mm, digital display;
10. Y, Z axis feed indication accuracy: 0.01mm;
11. Worktable angle: 0-360°, resolution 0.01°, digital display;
12. Repeated positioning accuracy of worktable: < 0.032°
13. Cutting sample size: Ø 300 mm × 300 mm (max);
14. Tension system: pneumatic tension, tension pressure adjustment range 0-1mpa;
15. Safety control device: self stop and emergency stop switch of line break
SPEC Size ：1000mm×900mm×1700mm；
Weight About 500kg

Standard accessory
Tension pulley 2 pieces
Guide wheel 2 pieces
Diamond wire 2 rolls
Water pump 1 set
Resin ceramic block 2 pieces
Paraffin wax stick 4 pieces

Optional accessory
1. Diamond wire (Ø 0.125mm, Ø 0.25mm, Ø 0.35mm, Ø 0.42mm)
2. Cutting oil
3. STX-1200-YB wire cutting machine swing mechanism (especially suitable for
cutting high-hardness materials, such as gems, jade, etc., or low-hardness
graphite, KDP, etc.)
4. STX-1200-A axis swing rotating mechanism (especially suitable for cutting high
hardness materials, such as jade, etc.)
5.CYKY series heating platform
6. Silent oil free air compressor
7. DX-100 single crystal orientation instrument

Minimum Order: 1 sets

Click to Enlarge
