Plastic PTFE Paste Extruder Machine Easy Maintenance With Intelligent Contr

Product Description

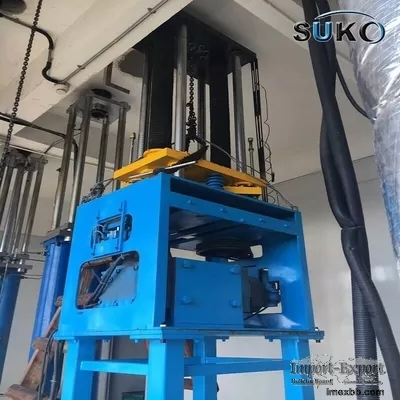

PTFE Plastic Paste Extruder Machine



Plastic PTFE Paste Machine Features:



ü Adopt adjustable speed to accommodate pitch,no need to change gear while
operation;

ü High productive efficiency ; production rate is three times higher than
present usual machine per hour, the max production reach to
98m/hour;

ü Low noise , transmission and pulling system adopt absorbing sound
,reducing shake and inserting equipment;

ü Easy maintenance ,transmission flexible, structure easy install and
remove.

ü More friendly to environment: no PTFE powder splashing but powder output
automatically

ü Intelligent control : producing gaskets by controlling the power quantity

ü More time saving : the power cut off automatically while the production
number set up

ü Longer working life : no heat while working.

ü high quality components used.



Flow Chart



Paster Extrusion tube process:

PTFE Fine Powder raw material →Sifting →Mix with solvent→ Heating→
Performing → Extrusion→ Sintering → Finished Tube.

Matched machine: Machine screening, Mixing machine, Performing machine,
Extruder machine, and Furnace heating, Mould.



Techincal Data:



Paste Extruder Type & Technical Data
DX-D01 (suit for 25-60 lodaing cavity)OD:2mm-6mm PTFE Paste extrusion
Hose Main machine : 30KW power 380V 50Hz one key start with hydraulic
drive.1.2M high for material load cavity.WorkBlank machine : 3KW with 380V
50Hz Hydraulic drive PTFE blank high with 300-600mm.Furnace : 18KW 380V 50Hz
with total high 8.5M 500 degree temperature.
DX-100(suitable for 60-120 loading cavity)OD:6MM-60MM -2 loading cavity FE
Paste extrusion Hose Main machine : 30KW power 380V 40Hz one key start with
hydraulic drive.1.5M high for material load cavity.WorkBlank machine : 3KW
with 300V 50Hz Hydraulic drive PTFE blank high with 300-600mm.




PTFE Hose Machine Specifications



* Long service life through solid workmanship and use of high quality
components* Low wall thickness tolerance through self-centering mandrel and
special nozzle* Measurement transducer like pressure, force and ram speed
for permanent control of the extrusion process and extrusion speed*
Hydraulic closure with high closing force for quick loading of the extruder*
Special pre-form press with pre-form preparation device for multiple loading
of the loading carriage i.e. extruder* Electrically adjustable mandrel*
Measuring and controlling system for constant extruder speed* Controlling
system for constant speed of the extrudate* User-friendly and maintenance-
free system* The paste extrusion systems are designed especially to
costumers requests* Automatic adjustment of the total system as well as
recording of the formula* Operating through touch screen and recording of
the extrusion process parameters

Get In Touch With Us Today
Our staff works closely with each customer to ensure that every job meets
your exact requirements and our high quality standards. Contact Sunkoo
today!

Please note: Any technical data provided is for informational purposes
only. Before specifying this machine for your application, please let us
know you requirement to better advise suitable machine for you.
