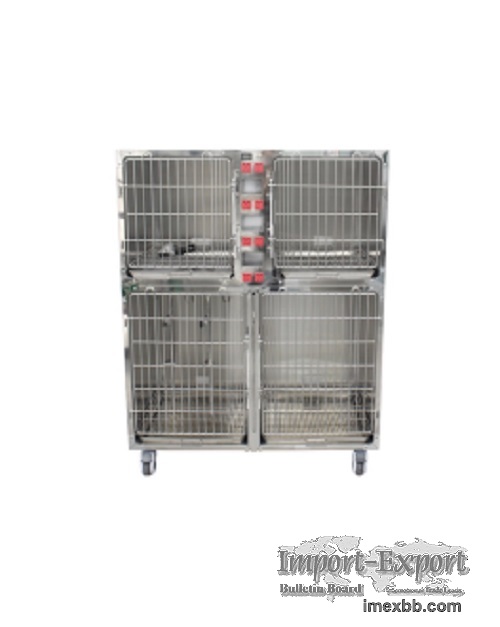

PJDY-02 Veterinary Recovery Cages

The overall 304 stainless steel material, anticorrosive, acid-proof rust, cage
material thickness of 1.2mm, cage door with diameter of 8mm and 6mm steel wire
composition, foot mesh with diameter of 10mm and 4mm steel wire composition,
connect the sewage plate material thickness of 0.8mm. The bottom moving wheel
adopts high-strength medical universal brake wheel.

Parameter Information Of PJDY-02 Veterinary Recovery Cages
PARAMETER
1. Overall dimensions: 1220 long, 700 deep and 1575 high

2. Upper cage: 550 long, 610 high and 700 deep Lower cage: 610 long, 820 high
and 700 deep

3. Dirt plate: 687 wide 540 high 45

4. Foot mesh: length 687 wide 545 thick 10

5. Upper cage door: long 470 high 480 thick 8

6. Lower cage door: 530 long, 690 high and 8 thick

Features Of PJDY-02 Veterinary Recovery Cages
FEATURES
01
PET Bottle Making Machine is suitable for producing PET plastic containers and
bottles in all shapes.
02
Unique sliding door lock design, automatic locking, good safety.
03
Pedal mesh and cage door high frequency and high current welding, strong
without welding.
04
The whole round corners of the dirt plate are designed, no dead corners are
left, convenient washing.
05
Internal seamless water retaining edge, more convenient and sanitary.
06
Lower cage movable drawing board design, drawing board can be turned into a
large cage.
07
The bottom moving brake wheel, silent, wear-resistant, easy to shift and fix.
08
Innovative design of cage, exquisite and chic. Optional combination, can be
customized.

Contact us to buy pet and vet supplies.

Minimum Order: 1 sets
