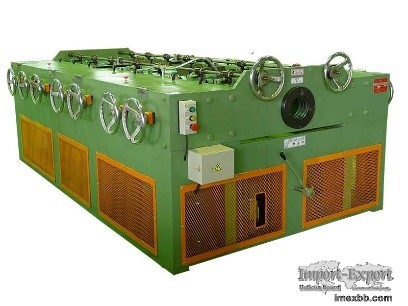

Pipe Straightening Machine - ST1514N

Description:
1. Motor: 15HP
2. Roller configuration: Ø176 x 200L
3. Applicable material: brass, aluminium, steel, special alloy
tube, pipe and bar
4. Applicable size: Ø30~100mm
5. Target range: Straightness ≦0.30mm/M

Applications and features:
1. Horizontal layout design with zigzag arrangement to press the materials
for straightening through multi-rollers.
2. All rollers are equipped with distance scale gauges for recording at
ease.
3. Machine equipped with inverter for the speed adjustment that is required
for each different composition of the material.
4. Automatic operation is available by connecting to the loading, feeding
and collecting machines.
5. Digital control model provides the operator records and references that
help to adjust the rollers required for straightening through interface.
6. Relevant working processes: Cold drawing, bending, lathing, cutting,
packaging
