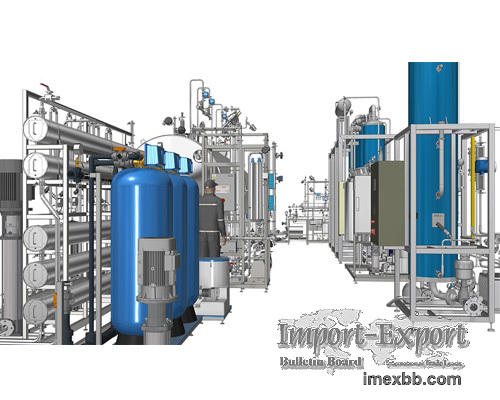

Pharmaceutical Water System

Pharmaceutical Water Systems

Water is the most widely used process raw material in the pharmaceutical
industry, which is used as the composition, solvent and diluent of drugs.
Pharmaceutical water is mainly divided into two categories:

Purified water: it is pharmaceutical water prepared from raw water by
distillation, ion exchange, reverse osmosis or other appropriate methods, and
does not contain any additives.

Water for injection: It is the water obtained by taking purified water as raw
water, distilling in a specially designed distiller, condensing and cooling.
Sterile Water for Injection is the water prepared according to the injection
production process.

The purified water system in pharmaceutical is composed of water treatment
equipment and transportation system. Through design, installation and
confirmation, judge and evaluate whether the equipment meets the predetermined
production capacity, water quality standard, capacity, flow rate, pressure,
temperature, disinfection method, etc.

The operation and maintenance of water system in pharma company shall be
monitored and managed according to the requirements of verification and
documents. Ensure that the operating parameters of the system are within the
range of operating parameters confirmed by the equipment.

TYPES OF BIOCELL PHARMACEUTICAL WATER SYSTEMS
Pharmaceutical Water Purification System
Water For Injection System (WFI)
Pure Steam Generation System(PS/CS)
Purified Water System(PW)
PW/WFI Storage & Distribution Systems
Pharma Water System Control & SCADA
Sanitary Heat Exchanger

Pharmaceutical Water Purification System
The pharmaceutical water system is composed of water treatment equipment and
transportation system. Through design, installation and confirmation, judge and
evaluate whether the equipment meets the predetermined production capacity,
water quality standard, capacity, flow rate, pressure, temperature,
disinfection method, etc.

Ultrapure Water System
Ultrapure water is produced by distillation, deionization, reverse osmosis
technology or other appropriate supercritical fine technology. Now ultrapure
water has been widely used in biology, medicine, industrial manufacturing and
other fields. Ultrapure water system refers to the production system in which
raw water and ultrapure water are completely produced. The conductivity of
common tap water is less than 10-20 after being treated by the primary reverse
osmosis system μ S/cm, permeate conductivity1-5 after secondary reverse
osmosis system μ S/cm is even lower. The reverse osmosis system can be
supplemented with ion exchange equipment or EDI equipment to prepare ultrapure
water, making the resistivity as high as 18.25 megohm. cm.

GOOD DESIGN PRINCIPLES OF BIOCELL PHARMACEUTICAL WATER SYSTEM
01
Customization
Comprehensively understand the customer's actual needs for water preparation
process, system configuration, etc., and customize the water system.

02
Cooperation
BIOCELL is a member of China Pharmaceutical Equipment Industry Association, and
has long maintained technical exchanges and cooperation with many well-known
domestic pharmaceutical enterprises.

03
Experienced
BIOCELL has a group of industry senior experts, professional designers and
experienced project installers who have practiced in many application fields
for many years, with an average working time of more than 10 years.
