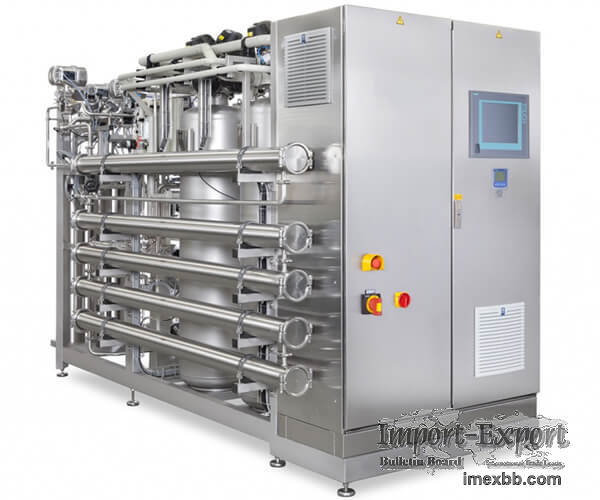

PHARMACEUTICAL REVERSE OSMOSIS SYSTEM

With RO membrane separation technology as the core, it adopts automatic
control, integrated design, modular installation, low energy consumption and
small floor area. Double pipeline water supply and single pipeline circulation
mode are adopted for water production to effectively control the growth of
microorganisms. The control system has anti misoperation settings, audit
tracking functions, and data is permanently saved and cannot be modified. The
electric control system is standardized and reasonable, strong and weak current
are separated, safe and stable. The touch screen, instruments, meters and
valves are highly humanized and easy to operate and view.

Specification of Pharmaceutical Reverse Osmosis Systems

Item Type Wateroutput Minimum water intake desalination rate
Operating water temperature
（m3/h） （m3/h） （%） （℃）
FSJ41X-0.5XB-2 0.5 2.2 98 5-35
FSJ42X-1XB-2 1 2.8 98 5-35
FSJ42R-2XB-2 2 4.1 97 5-35
FSJ43R-3XB-2 3 6.5 97 5-35
FSJ43R-4XB-2 4 7.8 97 5-35
FSJ82R-6XB-2 6 12.5 97 5-35
FSJ82R-8XB-2 8 15 97 5-35
FSJ83R-10XB-2 10 15 97 5-35
FSJ83R-15GB-2 15 31 97 5-35
FSJ84R-20GB-2 20 38 97 5-35
FSJ85R-25GB-2 25 41.25 97 5-35
FSJ86R-30G-2 30 47.5 97 5-35
FSJ86R-50G-2 50 79.5 97 5-35

FEATURES OF PHARMACEUTICAL REVERSE OSMOSIS SYSTEMS
01.
Modular design, compact structure, convenient and fast on-site installation.

02.
Automatic switching between water making mode and circulating mode to reduce
energy consumption.

03.
Double water supply mode is adopted for water production terminal.

04.
Concentrated water recovery design (optional), system utilization rate can
reach more than 85%.

05.
PLC+HMI full-automatic control mode.

06.
Fully comply with GMP, USP and cGMP requirements.

If you have needs to buy ro water system in pharma industry, please leave us a
message.

BIOCELL is committed to providing customers with professional solutions for the
production, storage and distribution of purified water system in pharmaceutical
industry.
