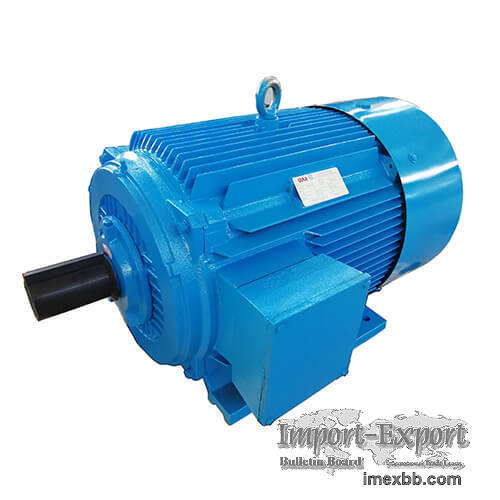

Permanent Magnet Synchronous Motor

The permanent magnet synchronous motor product is developed and manufactured
according to China JB/T 13297-2017 "TYE4 series three-phase permanent magnet
synchronous motor technical conditions", and the efficiency meets the energy
efficiency standard of GB30253-2013 "Permanent magnet synchronous motor energy
efficiency limit value and energy efficiency grade". To achieve the
international advanced level of similar products, listed in the first batch of
high-efficiency and energy-saving motor promotion catalogue of China National
Development and Reform Commission.
Visit our website for more information.
The stator structure of the low voltage high efficiency permanent magnet
synchronous motor is similar to that of the ordinary Y series asynchronous
motor. Using modern high-performance motor design theory and design technology,
the core and winding are optimized; the rotor is placed in the high-performance
rare earth “magnetic king”, which optimizes the squirrel cage structure and
can generate higher starting speed than ordinary asynchronous motor at rated
voltage and rated frequency. Moment.
Rare earth "Magnetic King" is recognized as the world's highest permanent
magnet material with magnetic energy content, saturated magnetization, and
presents a "permanent magnetic field". After the motor is installed, the
reactive current is not required, and the permanent magnetic field of the
"Magnetic King" interacts with the three-phase current of the winding to
generate a stable electromagnetic torque to drive the load.
Product Parameters
Center height range: H80 ~ 355mm
Power range: 0.75kW to 315kW
Synchronous speed: 3000/1500/1000/750/600 r/min
Number of poles: 2/4/6/8/10/12
Rated voltage: 380V/415V/440V/690V/1140V
Rated frequency: 50HZ/60HZ
Protection level: IP54 or IP55
