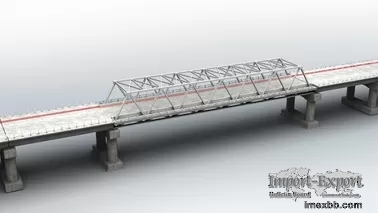

Permanent Assembly Steel Truss Bridge Concrete Deck for Medium Spans

Permanent Assembly Steel Truss Bridge Concrete Deck for Medium Spans



Steel Truss Bridge is a kind of Assembly Bridge down supporting, mainly used
for medium spans.

The bridge deck is concrete used as permanent bridge.

The surface protection can be paint or hot-dip galvanized.

Bridge load capacity, width can be designed according to user's requirements



Introduction

Bailey Bridge is a standard bridge equipment, adopted extensively and the most
popular in the world


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity


Features

1. High strength and big stiffness , relative to the concrete bridge can be
reduced trabecular high and self-respect
2. Due to the steel isotropic, quality of a material is uniform and modulus of
elasticity, that make steel bridge in the working condition and calculation
compared with the assumption
3. Steel bridge generally USES factory, site splicing, the construction period
is short, processing convenient and not affected by seasonal effect.
4. Steel bridge is suitable for industrialized manufacture and very convenient
to transport.
5. Steel bridge is easy to repair and replace,long lifetime,material can be
recycled.


Application

Beam bridge,arch bridge,rigid frame bridge,cable-stayed bridge,suspension
bridge. passenger foot-bridge


Mixture form to erect all kinds of

Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be
erected.
The bridge has the advantages of few components, light weight and low cost.
Bailey Bridge requires no special tools or heavy equipment for construction,
the bridge elements
are small enough to be carried in , and the bridge is strong enough to carry .
It is considered a great example of military engineering.


The compact 200 panel bridge: The compact 200 panel bridge is similar to the
compact 100 panel
bridge from their appearance. The difference is its increased panel height to
2.134m. It employed the method of alternating joints between Reinforcement
Chords and the joints between panels. This method can decrease inelastic
deformation caused by the oversized pinholes.
Pre-arch method is used to additionally cut down mid-span and vertical
deflection to a larger degree.
Bolt-connected components use the orienting sleeve- fixing method to increase
accuracy of connections. Shear is created in orienting sleeves and tension is
developed in bolts, which increase the usage life of the bolts and ensure the
safety of panel bridges. Wind resistant brace is made to be composite type and
is connected to transom/girders to improve overall stability of panel bridges.





Competitive Advantage:


Heavy loading capacity
Used as permanent bridge
Good stability
Simple structure
Long service life
Beautiful appearance
