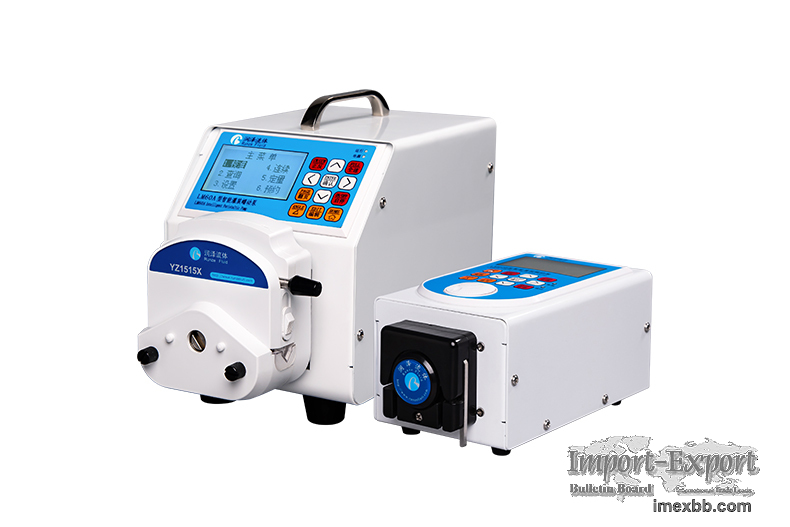

Peristaltic Metering Pump

Peristaltic metering pump is an intelligent peristaltic pump that be able to
preset dispensing volume, dispensing time, cycle times, waiting time to process
a regular filling procedures, LED screen will show some important parameters of
what pump is working on, foot pedals are optional to freedom your hands in labs
or surgeries.

Metering Mode of Peristaltic Tubing of Peristaltic Metering Pump
a. Continuous mode - For continuous liquid transfer with no specific
requirements
b. Rationing Mode - Realize one-off liquid dispensing in a specific volume
c. Booking Mode - Realize liquid dispensing in a specific volume at N times
d. Calibration Mode - Proceed calibration model before starting any other
working model to ensure high accuracy of the test result
Specification of Peristaltic Tubing of Peristaltic Metering Pump

Product name LM60A/LM60B Intelligent Peristaltic Pump
Language Chinese/English
Pump head LM60A: YZ1515X/YZ2515X/SN15/SN25;
LM60B: RZ1030-4
Motor type Stepper motor
Pump Roller YZ/SN: SST 3 rollers/6 rollers
1030-4: 4rollers
Speed range 0.1-400rpm, reversible
Speed resolution 0.1rpm
Flow range LM60A: 0.027-1385ml/min
LM60B: 0-161ml/min
External control Foot pedal, RS232, RS485
Working mode calibration mode, continuous mode,
metering mode, booking mode
Latency time 0-999999s
Dispensing volume Pre-settable
Dispensing time Pre-settable
Interval time 0-999999s Pre-settable
Full speed One button to make it full speed (filling or empty)
Power supply AC100-240V, 50/60Hz
Maximum power LM60A: 35W
LM60B: 20W
Working temperature 0-40℃
Working humidity <80%RH relative humidity, non-condensing
Protection grade IP31
Ne weight LM60A: 3.5kg
LM60B: 1.45kg

1. Tubing life measured by pumping pure water under continuous working at the
room temperature 20℃ and no extra pressure until it cracks.
2. Tubing life vary from different medium, motor speed, working environment,
the lower motor speed helps to extend the service life of tubing.
3. Please replace new pump tube regularly to achieve higher precision liquid
transfer.

LM60A Flow Rate Instruction (Media: water)

Model No. Color Rollers Tubing Maximum Flow Rate
LM60A-YZ1515X-3B White 3 #14 #16 #25 #17 1385ml/min (400rpm)
LM60A-YZ1515X-3H Black
LM60A-YZ1515X-6B White 6 #14 #16 265ml/min (400rpm)
LM60A-YZ1515X-6H Black
LM60A-YZ2515X-3B White 3 #15 #24 747ml/min (400rpm)
LM60A-YZ2515X-3H Black
LM60A-SN15-3
Transparent 3 #14 #16 #25 #17 1097ml/min (300rpm)
LM60A-SN15-6 6 #14 #16 180ml/min (300rpm)
LM60A-SN25-3 3 #15 750ml/min (300rpm)

LM60B Flow Rate Instruction (Media: water)

Model No. Color Rollers Tubing Maximum Flow Rate


LM60B-RZ1030-4

Black

4
ID0.64-3.0mm
WT0.8-1.0mm
OD≤5.0mm 125ml/min
(ID2.54*WT0.8mm rubber tube)
145ml/min
(ID2.79*WT0.8mm rubber tube)
161ml/min
(ID3.0*WT1.0mm silicone tube)
