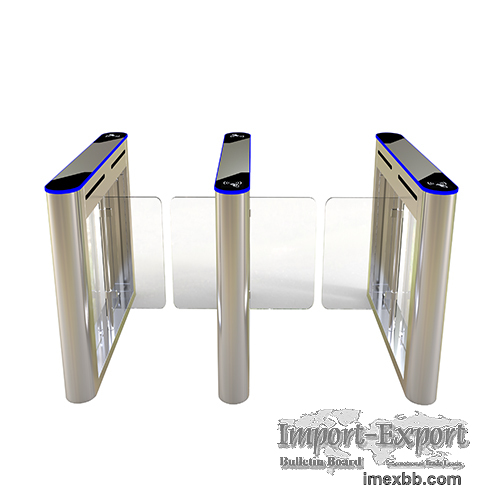

Pedestrian Turnstile Swing Barrier JDBZ-25

Pedestrian turnstile swing barrier, automatic swing barrier turnstile operates in a smooth, fast and reliable way with low noise and low power consumption

Pedestrian turnstile swing barrier JDBZ-25 is designed with slim, elegant and stylish apperance, operating in a smooth, fast and reliable way with low noise and low power consumption. As an effective crowd control solution for the applications requiring rapid throughput and modern design bleding into the aesthetics of the surrounding space, swing pedestrian turnstile gate JDBZ-25 is often installed in upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important.

Pedestrian turnstile swing barrier gate JDBZ-25 is flexibly compatible with all access control systems with dry contact output, such as the RFID card system, face recognition, temperature checker system, coin operated system, bar code system, ensuring one person, one passage each time. Finally, swing pedestrian turnstile gate JDBZ-25 provides single directional and bi-directional entry control, and automatically release the passage for free access In case of power failure or emergency.

Pedestrian Turnstile Swing Barrier Features
1. Smooth and fast opening of barriers
2. Solution for disabled and trolley access
3. Free egress in emergencies or loss of power
4. Quick and precise panel movement and alignment
5. Motorized panels open quickly and smoothly away from the user
6. Slim cabinet allows optical turnstile use in compact spaces
7. Upscale look suitable for any premium lobby
8. Run more smoothly and stop quickly after being blocked
9. Streamlined design with a more modern aesthetic
10. Adopt more reasonable electric control and layout to improve the protection level

Pedestrian Turnstile Swing Barrier Applications
Subway
Large venues
Stadium
Commercial buildings
Fitness center

Pedestrian Turnstile Swing Barrier Parameters
Housing Material: #304 stainless sheet
Dimension: 1400 x 185 x 980mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 600~900mm
Drive Motor: DC 24V brushless motor
Pass Speed: 30 ~35 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Gate open when power failure: Yes
Open Time: 0.2 second
Life Cycle: 3 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)

FAQs
What is a pedestrian turnstile swing barrier ?
Pedestrian turnstile swing barrier is a classic type of waist optical touchless turnstile combining the security of a physical barrier turnstile with the sophistication of optical beam detection to prevent tailgating and unauthorized entry with ease. Swing turnstile gate is designed with sleek styling and modern appearance, and such modern optical turnstile blends right in and complements its surroundings seamlessly with its included illumination packages and sleek, modern styling. Pedestrian turnstile swing barrier gate usually comes with slim size and very compact footprint by which solves the issue of introducing security and safety into small and valuable areas of real estate spaces. On the other hand, swing pedestrian turnstile gate is equipped with standard interfaces to be integrated various access control systems to achieve multipl recognition ways.

How does a pedestrian turnstile swing barrier works?
Pedestrian turnstile swing barrier is an efficient and effective crowd management designed to control pedestrians entering or exiting restricted areas, usually under surveillance, in low security situations. Swing arm optical turnstile provides bi-directional access in conjunction with a facility access control system. When enter, pedestrians need to present a valid credential which opens the turnstile’s motorized barriers in the requested directions, allowing a single passage at one time. If an unauthorized pedestrian attempts to tailgate on a valid entry, or attempts to enter without authorization, the integrated sensors recognize the illegal passage attempt and sound an alarm, and deny the access. In case of power failure or an emergency, the swing pedestrian turnstile gate will relase their swings for free access.

Pedestrian turnstile swing barriertypes
According to the difference of drive motor, pedestrian turnstile swing barriers are divided into
Brush motor pedestrian turnstile swing barrier: uses DC24V brush motor, featuring cost saving, simple structure. relatively simple in speed control.
Brushless motor pedestrian turnstile swing barrier: uses DC24V brushless motor, featuring no mechanical friction, low running noise, long life span, higher rotation speed, higher power conversion efficiency, and more energy saving than brush motor swing barrier gate
The cost & price of brushless motor pedestrian turnstile swing barrier is higher than brush motor type ones.

What are the advantages of pedestrian turnstile swing barrier?
1. Pedestrian turnstile swing barrier is supplied with multiple physical barrier height and lane widths providing easy access to the disabled, wheelchairs, and people with large objects or deliveries, meeting both accessibility and security requirements.
2. Swing pedestrian turnstile gate provides fast throughput to achieve fast, effective and covinient crowd control management
3. Waist height swing barrier gate comes with small footprint, well suit with compact areas
4. Access control swing barrier turnstile is supplied with sleek and modern designs blending into surrounding aesthetics
5. Swing barrier turnstile guides the pedestrians by switches, light information, and combined obstacles to ensure only one passenger can pass at a time.

Pedestrian turnstile swing barrier applications
Pedestrian turnstile swing barrier provides fast throught and comes with sleek design, which enable them to be used for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important

Minimum Order: 2 sets
