PCB FAKRA HSD Connector 4+2 Pin Code Z Female For Automotive

PRODUCT DESCRIPTION

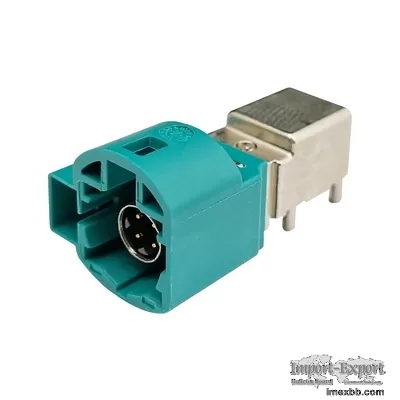

HSD 4+2 Pin Female Code Z For Automotive Power HSD PCB Connector

Description:

HSD PCB connector connectors provide connectivity solutions for automotive
infotainment modules, cameras, GPS, display devices, and remote vehicles. RF High
Speed Data (HSD) cable assembly is a 100Ω connection system for differential and
digital data transmission. HSD connector products are designed for high speed data
transmission to meet automotive data rates up to 6GHz.

Key Feature:
1. Single solution for digital transmission standards
2. Female contacts with tight entries to prevent mismatches and stubs
3. 100Ω impedance
4. Combined with the following devices
-Low Voltage Differential Signaling (LVDS)
-Gigabit Video Interface (GVIF)
-USB
-IEEE 1394
-Ethernet

5.MOQ:20 PCS

Technical Specifications:

Material
Housing PA
Center Pin Copper Alloy
Outer contact Zinc Alloy
Insulator HTN
Electrical Performance
Impedance 100 Ω
Frequency Range DC to 2 GHz
Return Loss
≥20 dB to 1 GHz
≥17 dB to 2 GHz

Insertion Loss ≤0.1 dB to 2 GH
Insulation Resistance ≥ 1000 MΩ
Center Contact Resistance ≤ 8mΩ
Test Voltage 250 V rms
Working Voltage 100 V rms
Contact Current ≤ 1.5 A DC
Mechanical Performance
Mating Cycles ≥ 25 Time
Engagement Force ≤ 30 N
Disengagement Force ≥5 N
Retention Force Latch ≥ 110 N
Temperature Range -40 °C ~ +105 °C
