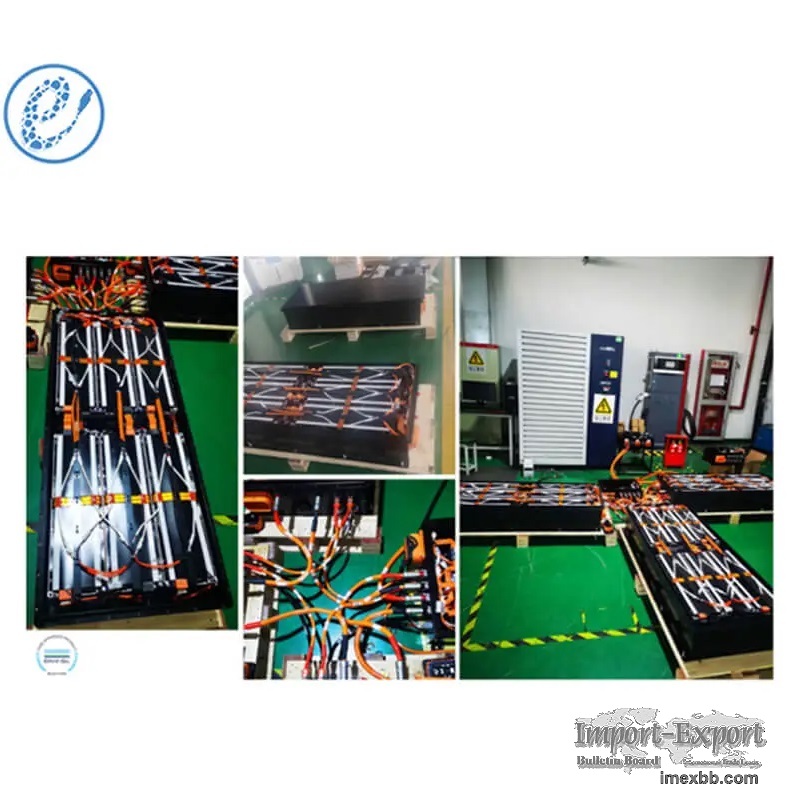

PC020502-211.2V206A (206AH1P66S) LFP206Ah 1P66S Pack

LFP206Ah 1P66S Pack is a rechargeable lithium battery packs with a nominal
voltage of 66V and a capacity of 206Ah. It features a long cycle life and is
resistant to overcharge and over discharge, making it a reliable and safe
choice for a wide range of applications.

Specification of PC020502-211.2V206A (206AH1P66S) LFP206Ah 1P66S Pack
Attribute 206Ah
Chemistry LiFePO4
System Voltage nominal 96V up to 768V
System Capacity 206A
system Energy 16.9kWh-135.2kWh
System Continous charge current 1C, 206A
System Continous discharge current 1C, 206A
Temperature range charge 0℃-55℃
Temperature range discharge -20°℃-55℃
Heating System PTC Heater inside each pack
Ingress protection Pack IP67
Ingress protection PDU IP67
Communication protocoll CAN 2.0A/B, SAEJ1939
Pack size Type -L-S-M-LFP-206
Capacity [Ah] 206Ah
Voltage [V] 211.2
Cell config. 66
Modul config. 6x (1p11s)
Energy [kWh] 37.2
Weight [kg] 328
Width [mm] 630
Heigth [mm] 240
Length [mm] 1630
Fuse 400A

As a lithium ion battery manufacturer, we can also offer sorts of eco battery
pack for sale, if you are interested, please contact us.

Minimum Order: 1 sets
