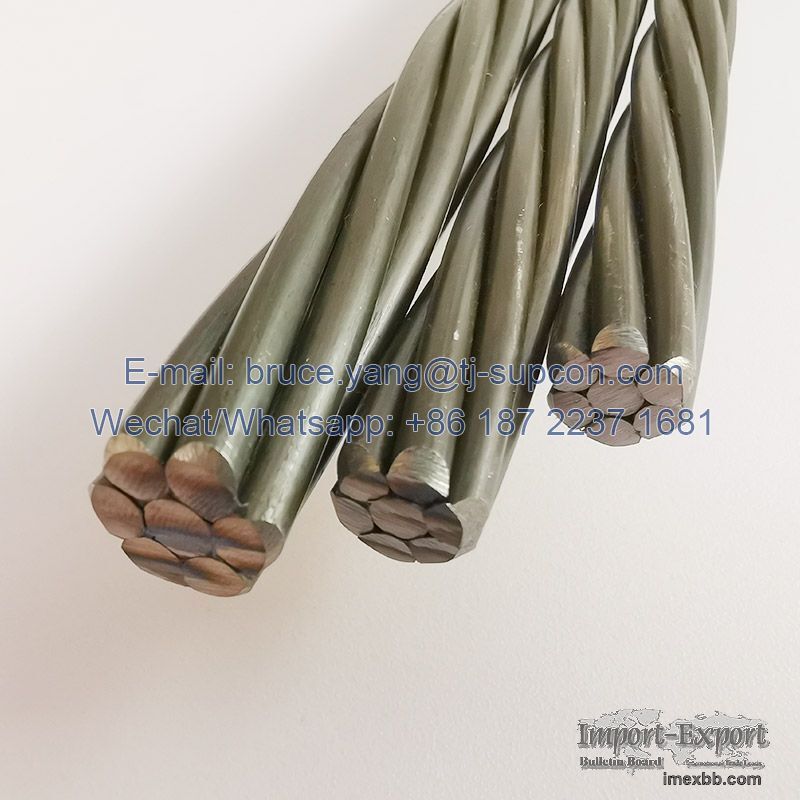

PC Steel Strand

Steel Strand (also referred to as Prestressed Concrete Steel Strand), is made
from the stranding of seven wires of high carbon steel wire rod, and mainly
used as auxiliary reinforcing strand for concrete structures.
https://www.hyxpcwire.com/product-pc-strand.ht , ml
It has the following characteristics and advantages:
High tensile strength, low relaxation
It has high fatigue, fracture load and corrosion resistance
It performs better at high temperatures
Stable modulus of elasticity
The high binding force
Reduce deformation and construction weight
PRODUCT PROPERTIES
Steel Strand Huayongxin Properties
Product Name Steel Strand
Type Bonded & Unbonded
Materials SWRH82B
Diameter 1x7 Wire 9.53mm, 12.7mm, 15.24mm
Tensile Strength 1860Mpa
Relaxation (%) ≤2.5
Elongation (%) ≥3.5
Standard ASTM A 416, GB/T5224-2003, BS5896, JISG3536-88
Coil Dimension & Weight Inner Diameter: 800m
Outer Diameter: 1400mm
Width: 750mm
Coil Weight: 2.5-3.2MT/Coil
Packing Coils wrapped by 8 steel strips → Fully wrapped with waterproof & P.P
woven sheet → Fixed with wooden pallet → Strapped at 8 places with steel
strips
Properties Application Steel Strand Huayongxin is mainly used in prestressed
and post-tension concrete structure, such as post-tension slab, large-span
bridges on railway and highway, overhead crane beam, prefabricated bridge
girder, multi-storey industrial buildings, stadiums, rock-soil anchoring
project, coal mines, etc.
HUAYONGXIN Advantages Extensive experience in exporting.
Professional team to manage production and control product quality.
Three rust-preventive measures taken to guarantee no rust caused.
Special designed wooden pallet used to avoid any damage to the container during
offloading.
Equipped with advanced testing facilities and abide by the principle of testing
each coil produced.

Minimum Order: 25 metric tons
