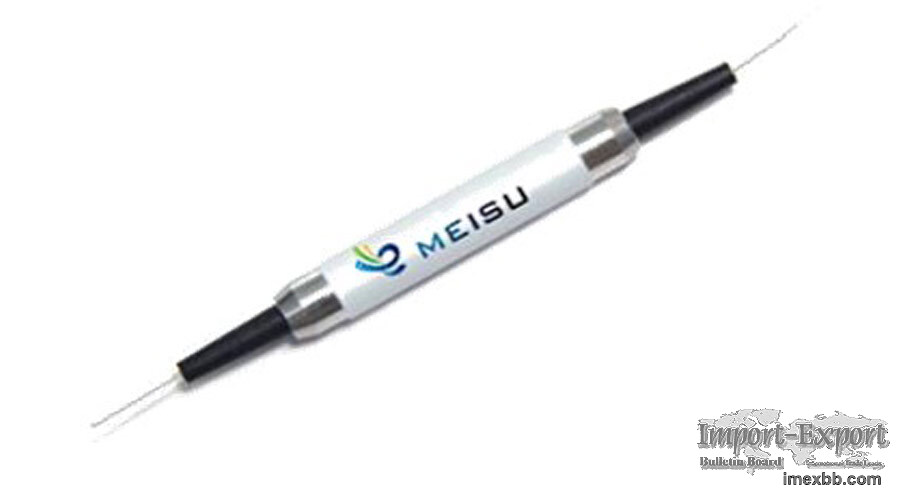

PBS/PBC Polarization Beam Splitter/Combiner

Polarization Beam Splitter/Combiner, or PBS fiber polarization beam splitter,
is a fiber assembly built on polarization-maintaining or regular fiber. It is
normally used for coupling two beams of ortho-polarized light into one fiber or
coupling a single output containing ortho-linearly polarized light into two
fiber outputs respectively. With its multi-functions, the polarizing beam
splitter is an important device in EDFA and Raman amplifiers.

As a manufacturer who is familiar with the polarizing beam splitter theory ,
MEISU's pbs polarization beam splitter are all featured with a wide operating
wavelength with a specified center wavelength such as 1030/1064/1310/1480/1550.
And other beams of special angular polarization states (e.g. 45°) can be
coupled or separated with our products as well.

PBS/PBC INQUIRE NOW
PBS/PBC Features

Optical Path Epoxy Free

Wide operating wavelength

Low insertion loss

High return loss
High stability and reliability

IL<0.7db, er="">22dB
Custom design based on application
Idea for MUX/DEMUX and EDFA

How It Works
Polarization Beam Splitter /Combiner (PBS/PBC) normally work as a polarizing
Beam Splitter, where a beam is divided into two orthogonal Polarization states.
However, with the right use, the polarization beam splitter fiber can also work
as a polarizing Beam combiner, where a polarized beam from two polarizable
fibers combines a wave into a single-mode fiber for output.

MEISU is a professional fiber optic switches manufacturers, we provide high
power polarizing beam splitter, polarizing beam splitter matrix, polarizing
beam splitter wiki, v groove fiber array, Linear Fiber Array, PM Fiber Device,
pm fiber assemblies and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
