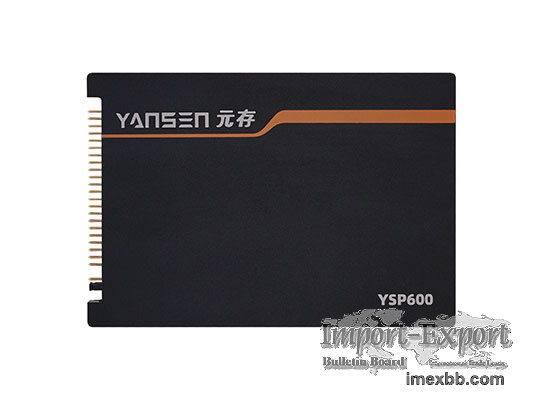

PATA YSP600E-X-XXX

The YSP600E-X-XXX SSD is the 2.5" PATA drive based on an advanced industrial
flash memory technology, it has a tough outer metal case, high reliability and
anti-shock features that make it ideal to replace traditional 2.5" PATA HDD.
In response to customer needs, Yansen launched PLP function option to prevent
end user loose important data.

Characteristics Of YANSEN PATA YSP600E-X-XXX

Product Model YSP600E-X-XXX
Flash Type SLC/MLC
Capacity     8GB~128GB
Sequential Read（MAX） Up to 125MB/s
Sequential Write（MAX） Up to 100MB/s
4K Random Read 2500 IOPS
4K Random Write 500 IOPS
Operating Temperature -20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature -55°C ~ +95°C
Humidity 5%-95% RH non-condensing
Shock 1500G/0.5ms
Vibration 80Hz~2000Hz/20G
Operating Voltage DC 5V±5%
Power Consumption（MAX） 1.6W
Dimensions L100mm*W69.8mm*H9.6mm ±0.15mm
MTBF 2 million hours

Advantages Of YANSEN PATA YSP600E-X-XXX

Interface: PATA 44PIN, ATA-7（133MBps）

Low-Density Parity-Check (LDPC) Code）

Global Wear Leveling

Flash bad-block management

Flash Translation Layer: Page Mapping

Support S.M.A.R.T.

Support TRIM

Power Loose Protection PLP

As a professional ssd supplier, we provide ssd half msata, pata solid state
drive, pata hard drive, pata to msata, solid state drive storage devices, etc.
For more info, please feel free to contact us!
