PARTING AND GROOVING INSERT

Parting and grooving inserts are inserts for cylinder parting and grooving,
including to the outer circular, the inner hole groove, the cutter withdrawal
groove, and the end face groove.

The groove shape includes the narrow, wide, and forming groove. There are deep
grooving tools, including 1 mm grooving insert, radius grooving insert, etc..
The process features of these inserts are as follows:

1)There are one main cutting edge and two auxiliary cutting edges involved in
three-dimensional cutting at the same time. The feed is small, cutting
thickness is thin, the unit cutting force is increased, total cutting force and
power consumption are large, the cutting heat is high, heat dissipation is
poor, and the cutting temperature is high.

2)The cutting speed changes constantly in the process of machining, especially
when parting, the cutting speed changes from maximum to zero.

3)As the workpiece rotates, the cutter cuts in continuously. In fact, the
Archimedes spiral surface is formed on the workpiece surface. As a result, the
actual front angle and back angle are constantly changing, making the process
more complicated.

4)Due to the narrow width of the tool, relative hanging elongation, poor
rigidity of the tool, easy to vibrate.

Betalent carbide insert parting tool are designed and manufactured considered
above factors and are belong to high-level quality. The standard stock mainly
includes the following three categories.

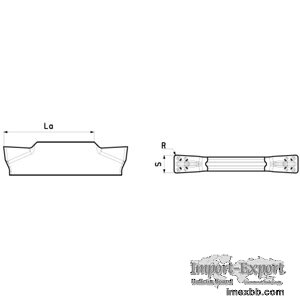

Model code S R La
MGMN200-M 2 2 14.5
MGMN250-M 2.5 0.2 17
MGMN300-M 3 0.4 17
MGMN400-M 4 0.4 22
MGMN500-M 5 0.8 22
MGMN600-M 6 0.8 22

Model code S R La
MRMN250-M 2.5 1.25 17
MRMN300-M 3 1.5 17
MRMN400-M 40 2 21
MRMN500-M 5 2.5 20
MRMN600-M 6 3 19

Xiamen Betalent Carbide Co., Ltd is one of the professional carbide suppliers,
focusing on designing, producing, and selling cemented carbide materials and
carbide product. Betalent carbide factory has advanced facilities and
inspection instruments, offers carbide products to the middle to the high-end
market.

Minimum Order: 1 long tons
