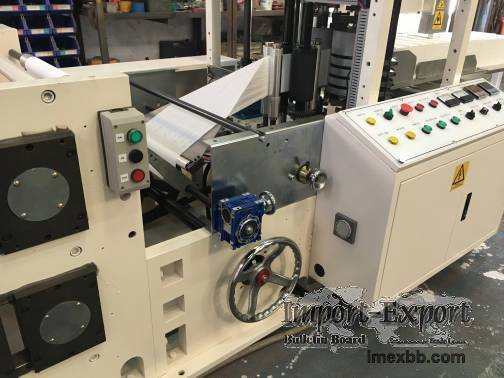

Paper Napkin Folding Machine

Paper Napkin Folding Machine

Napkin Folding Machine
Comes with accessaries

Model : JY330B-1T2E
Manufacturing year : 2017

Technical data
* No. Of Lane : 2 Lanes delivery
* Folding system : Mechanical system
* Folded Type : 1/4-fold
* Unfold size (W x L) : 330mm (W) x 330mm (L)
* Folded size (W x L) : 165mm (W) x 165mm (L) ± 3mm tolerance for 1/4-fold
* Operate capacity : 100 ~150 Meter/ per min. (400~500 sheets/per min. Depend on paper
quality)
* Converting web : 1 ply napkin paper 18~25g/㎡、2 ply napkin paper 18~25g/㎡

* Parent roll width (working width) : 330mm
* Parent roll diameter : Max.60" = 1524mm
* Shaft Core diameter : 3" = 76.2mm

Unwinding unit
• Single unwinding stand
• Pneumatically operated reel lifter
• Horizontal movement of paper roll - manual
• Mechanical adjusting tension speed of tissue paper
• Automatic paper roll small detector
• Automatic paper roll expiry detector

Embossing unit
Two (2) embossing units. (Steel roll to wood pulp paper roll.)
• First embossing unit with continuous and full embossing pattern No. 2A1932.-3.
• Second embossing unit is twin mold edge embossing pattern No. 2A1890

Band Saw cutting system with delivery table x 1 set.

Consisting of:
• Automatic grinding blade device (Automatic sharpening of blade).
• Sharpening by pneumatic driven via automatic device.
• Automatic electronic counter count adjustment device for sharpening time and interval time.
• Grinding stones through motor driven to sharpening saw blade.
• Adjusting grinding stones unit via manual device.
• Sharpening section: by pneumatically driven via automatic device
• Grinding stones by CBN (= industrial diamond with metal coating)
• Quick-change band saw knife device.
 
Electricals:-
Voltage : 380V, 50Hz
Power requirement
* 5.5Kw motor + inverter for main machine
* 2.2Kw motor for band saw

Minimum Order: 1 sets
