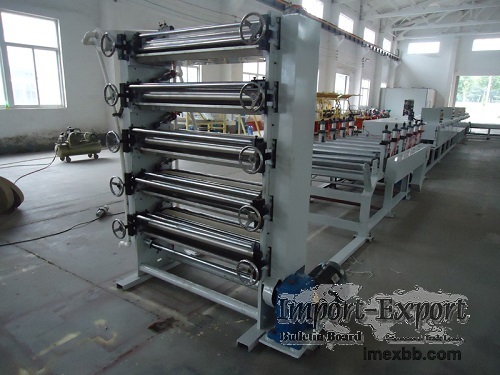

Paper Board Making Machine

The paper board making machine is designed for the paper slip sheet production.
This is the latest developed paper sheet production line. SANPPL-1200F line is
to produce slip sheets/flat paper boards with thickness of max.5mm and width of
max.1200mm. It adopts electric control system to guarantee stable speed of
20m/min. It has drying system to dry the cardboard.

Specifications of paper angle board machine
Model SANPPL-1200F
Max. board width size 1200mm
Min. board width 500mm
Thickness ≦5mm
Max. quantity of layer 4
Max. speed 20m/min
Paper stands Hydraulic paper stands without spindle
Applicable glue PVA glue
Drying system yes
Winding system Automatic winding system
Control system PLC, servo motor, touch screen, inverter
Quantity of cutter 1 set
Min. cutting length 350mm
Cutting tolerance ±1.5mm
Cutting system Automatic hydraulic cutting system
Longitudinal cutting 4 knives, can modify the edges
Main motor power supply 380V, 50HZ, 3 phase
Total weight about 6.5MT
Dimension(m) 33×3×1.8m (including dryer)
Operator 2-3 persons

If you want to know more information about san machinery, please visit our
website.

Minimum Order: 1 sets
