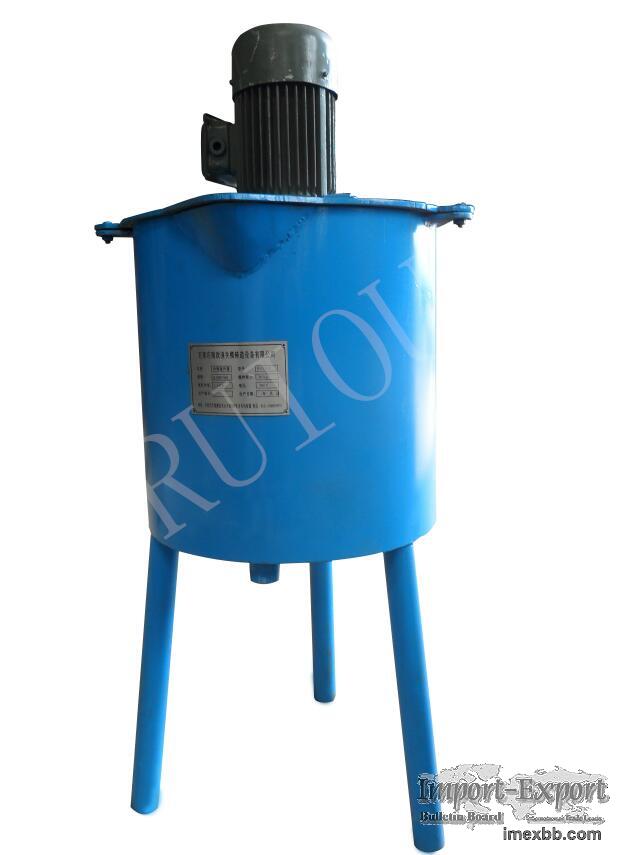

Paint mixer

This equipment is mainly used for the mixing of yellow zone paint in the field
of lost foam casting. It has the characteristics of large mixing volume, short
mixing time, simple structure, easy operation, and easy maintenance. At the
same time, it can control the stirring speed of the stirring shaft by frequency
conversion, which is suitable for yellow zone paint processing. The main
equipment.
Product structure　
The paint mixer is mainly composed of a mixing barrel, a mixing shaft
combination, and a motor reducer.
Product performance and characteristics
1. For the first time in the lost foam mixing industry, this equipment uses a
shell coupling for the connection of the reducer and the mixing shaft, which
greatly improves the running stability of the mixing shaft.
2. The reducer adopts a helical gear reducer, which has the characteristics of
being able to withstand large radial loads, high strength, small size, and low
noise.
3. The mixing blade adopts the annular paddle type. After experiments and long-
term use, it has been proved that this type of blade has the characteristics of
good mixing and dispersing effect, small air suction, easy dispersion, and
difficult to produce bubbles.
4. The magnetic starter is controlled to protect the motor from overload and
phase failure.
