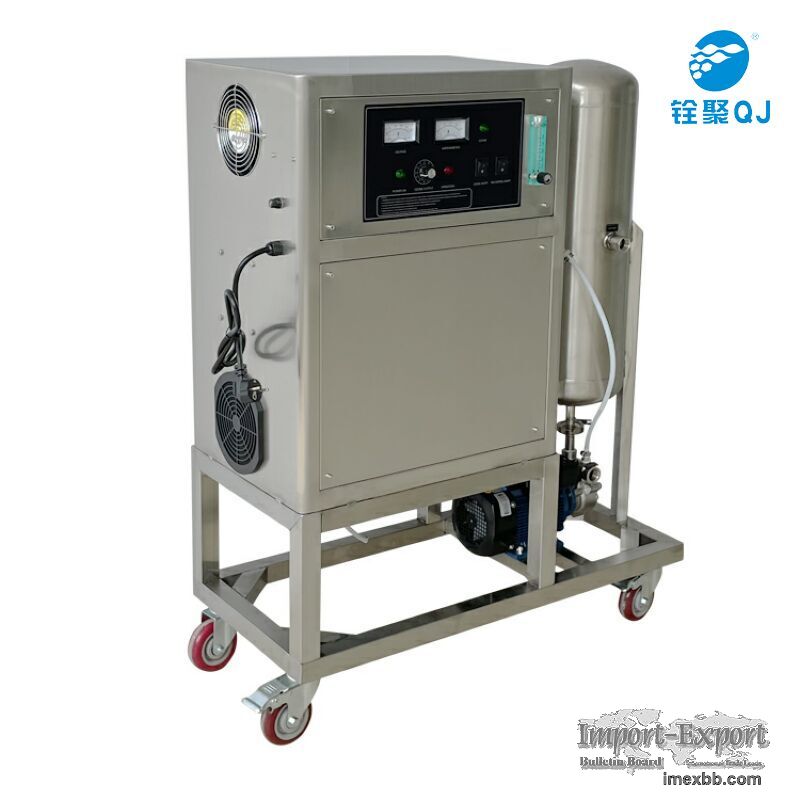

Ozone Water Generator

Quanju Ozone water generator is a compact unit which can generate ozonated
water from original water without extra installation. Ozone concentration in
water can be 1-5ppm according to different requirements on ozone water
application.

Product Description
Ozonated Water System (OWS) is an integrate ozone generator, mixing device and
contact tank, all in one system, it is convenient and installation friendly
system to give you minimum installation work, it has content normal water inlet
and ozonated water outlet.

The system instantly turns normal water into ozonated water for your
application, like water purification, swimming pool, vegetable fruits washer
and so on.

Feature

● Ozone output: 5g-100g according to requirements

● Technology corona discharge quartz ozone cell

● Adjustable Ozone output

● Cooling way: Air cooling(5g-15g), advanced water-cooling(20g-100g)

● Inner air compressor(5g-30g), external air compressor(40g-100g)

● Inner refrigerant dryer

● Inner PSA oxygen generator unit

● Turn off machine if no water in mixing pump

● Over-temperature protection

● Integrate ozone generators, mixing pump(venturi and booster pump optional)
and contact tank.

● No extra installation, compact unit



Specification:

5g-30g ozone water machine
Model Unit QJ-OWS-5G QJ-OWS-10G QJ-OWS-15G QJ-OWS-20G
QJ-OWS-30G
Capacity G/Hr 5 10 15 20 30
Oxygen flow L/Min 1-2 2-3 3-4 4-5 5-6
Gas supply   Inner oxygen generator or self oxygen source
Air compressor   Inner air compressor
Ozone water flow M3/Hr Customized water flow rate
Control   Oxygen/ozone On/off button, oxygen flow adjuster,

Construction   High grade SS304 external case, Integrate ozone
generators, mixing pump(venturi and booster pump optional) and contact tank.

Note: Ozone water machine is customized product according to ppm requirement
and water flow rate

40g-100g ozone water machine
Model Unit QJ-OWS-40G QJ-OWS-50G QJ-OWS-60G QJ-OWS-80G
QJ-OWS-100G
Capacity G/Hr 40 50 60 80 100
Oxygen flow L/Min 6-8 8-10 10-12 14-16 15-18
Gas supply   Inner oxygen generator or self oxygen source
External air compressor   1.5kw 1.5kw 2.2kw 3kw 4.5kw
Ozone water flow M3/Hr Customized water flow rate
Control   Oxygen/ozone On/off button, oxygen flow adjuster,

Construction   High grade SS304 external case, Integrate ozone
generators, mixing pump(venturi and booster pump optional) and contact tank.

Note: Ozone water machine is customized product according to ppm requirement
and water flow rate
