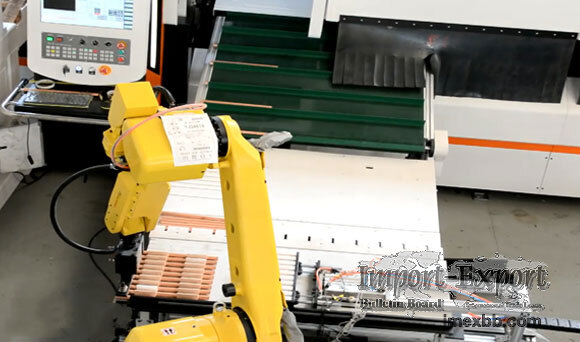

Overview of Fiber Laser Tube Cutting Machine Flexible Manufacturing System

GOLDEN LASER is one of professional tube laser cutting machine manufacturers.
We provide Smart Laser Tube Cutting Machine, Round Tube Laser Cutting Machine,
laser tube cutter, laser tube cutting machine for sale and so on. Want to know
more？Please contact us.

The integration of laser cutting and sorting will help customers achieve
flexible planning, production tracking, and quality monitoring. While improving
equipment utilization, it will reduce quality failures and manufacturing costs,
shorten delivery cycles, and achieve intelligent and digital production mode.

The automatic flexible tubing cutter produced by our company has different
types -- from 1000w fiber laser cutting machine to 8000w laser cutting machine
-- each type sells at a different price.

Automated Workflow of Fiber Laser Tube Cutting Machine FMS
Step 1
Loading a bunch of round tubes to the auto feeder of the tube cutting machine,
which has the advantage of high efficiency.

Step 2
Smart laser tube cutter equipped with fully electric floating support and auto-
focusing laser cutting head to ensure high precision during cutting.

Step 3
After the copper pipe is cut, the customized receiving tract will receive the
finished parts pipe, and then the pneumatic feeding fixture will feed it.

Step 4
Industrial robots will automatically clamp and clean workpieces.

Step 5
Industrial robots will palletize workpieces and can put more than 2000 tubes in
one box.

Highlights of Fiber Laser Tube Cutting Machine FMS
Automatic Loading and Unloading System
The fully automatic loading and unloading system is controlled by the CNC
system and seamlessly connected with the laser tube cutting machine to realize
the hoisting and loading of the whole bundle of tubes. The control system
intelligently divides and composes the tubes and the automatic conveying
process. A pipe component is sent to the position to be inspected for automatic
measurement, saving manual loading and unloading costs, and improving work
efficiency.
Synchronous Processing Of Industrial Robot
The 3D industrial robot can carry out automatic feeding of unconventional
length pipes and unloading of waste after cutting. At the unloading end, the
industrial robot is matched with the crawler. It can visually recognize and
automatically grab workpieces, and automatically palletize and store workpieces
after classification.

Intelligent Operating System
It adopts bus control mode, supports touch screen operation mode, and has 7
intelligent management modules for planning, production, process, debugging,
diagnosis, maintenance, and setting. It has its own tube material library and
integrates a variety of tube splicing processes.

Full Stroke Chuck
No manual adjustment is required. Intelligent pressure feedback system
automatically adjusts pressure according to different pipe diameters and
thicknesses. Intelligent identification and clamping of various pipe materials,
real-time monitoring and alarm, safe and efficient.

Application of Fiber Laser Tube Cutting Machine FMS
Food processing pipeline
This is a German 150-year-old food company. According to customer requirements,
a set of copper fast cutting and cleaning and packaging production lines is
customized. Reached unattended, in line with German security levels.

Samples of Fiber Laser Tube Cutting Machine FMS

Minimum Order: 100 sets
