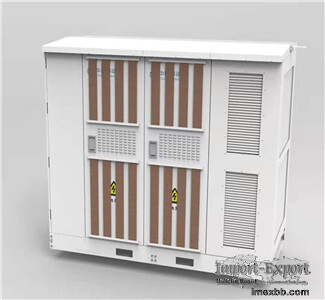

Outdoor telecom Integrated Cabinet

Outdoor telecom Integrated Cabinet outdoor all-in-one cabinet outdoor
cabinet for mobile communication

Product Introduction
Outdoor telecom Integrated Cabinet refers to the integrated equipment of metal
and non-metal materials directly affected by the climate. It can be equipped
with communication equipment, transmission equipment, monitoring equipment and
other ancillary equipment, and can provide reliable mechanical equipment and
equipment. Environmental protection is the normal operation of internal
equipment.

The production, performance and safety protection of the outdoor integrated
cabinet meet the current national codes and standards. The product adopts
modular assembly design, the structure of the whole cabinet is highly
compatible, universal and integral, and the product have unified after-sales
service management; The product is highly integrated, and can be implemented
plug and use, fast installation and delivery.

Our company has the production and service capacity of cabinet system and air
conditioning system to ensure the stability and maintainability of the entire
outdoor integrated cabinet system.

Configuration and Specifications
Model Specification and size (excluding beautified wooden   strip cover)
Outside dimensions（mm）
Length（L） Width（W） Height（H）
Outdoor integrated cabinet type A 1500±5 1200±5 2400±5
Outdoor integrated cabinet type B 2550±5 1200±5 2400±5
Outdoor integrated cabinet type C 3500±5 1200±5 2400±5

The Working Environment
Operating temperature: -40℃ ~ +55℃;
Storage temperature: -40℃ ~ +70℃;
Relative humidity: 5%-95%RH;
Atmospheric pressure: 54kPa ~ 101kPa (approximately 5000m ~ 0m above sea
level);
Total solar radiation intensity:≤1120× (1±10%) W/m2.

The Protective
High and low temperature: the product has the ability to withstand high
temperature of 65℃ and low temperature of -40℃;
Radiation resistance: the product has the ability to withstand the maximum
intensity of 1120× (1±10%) W/m2 of solar radiation;
Wind resistance: the product can withstand wind load of 60m/s;
Protection Level: the protection level of the product equipment cabin reaches
IP55;
Anti- Photochemical effect of sunlight: the high polymer materials such as
rubber and sealant exposed on the outer surface of the cabinet have good Anti-
Photochemical effect of sunlight ability. After 24 days of cyclic photochemical
effect test, there is no swelling or cracking phenomenon;
Heat insulation: the product has good heat insulation performance; the
comprehensive heat transfer coefficient is not greater than 3.0W/(m2·K).
Anti-salt fog: the surface material of the cabinet body has the ability of
anti-corrosion and anti-salt fog
Anti-static: effectively prevent the generation and accumulation of static
electricity, protect the safe and reliable operation of communication
equipment;
Light airtight: under the condition of closing the door and reserving the
orifice in the sealed masking design, no external light leakage into the
product in the equipment cabin.

The Earthquake Resistance Capacity
The seismic reinforcement of the product meets the requirements of the 8 level
intensity seismic performance regulation in YD  5083-2005 《Code for Seismic
Performance Testing of Telecommunication Equipment》

The Noise Requirement
In the closed state, the maximum noise is not more than 60dB at the position
1.5m away from the cabinet door and 1.2m above the ground.

The cooperation case:
China Mobile
Jiancheng is a data center manufacturer, which can customize the parameters and
models of idc micro module. We also provide OEM and ODM full set of outdoor
data cabinet solutions.
