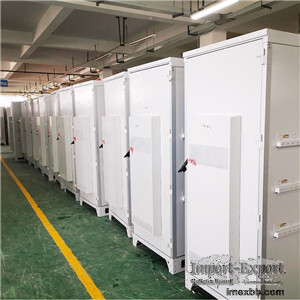

Outdoor All-in-one Cabinet

Outdoor All-in-one Cabinet outdoor server cabinet outdoor data cabinet
outdoor cabinet for mobile communication

outdoor network cabinet Description
In order to meet the none data room construction requirements of mobile
communication distributed base station, satisfy the needs of communication
environment of outdoor and device installation, the outdoor server cabinet is
presented. For all kinds of outdoor small cells and macro cells which use the
distributed device(BBU+RRU) can reference implementation, and  the
communication device mounting area and integration power system can be
configured based on the practical situation. The communication cabinet
installed outdoor configure the compartments for installation communication
device, power supply, battery, temperature controlling device and other
corollary equipment ( like ODF and so on ) inside the cabinet, so that can
provide the reliable mechanical and environmental protection and detachable
assembly cabinet for internal normal operation which can be installed on
difficult to carry place like outdoor, mountaintop and roof. It also has good
functions of wind-proof, sand-proof, rain-proof, sun-proof and theft-proof.
Heat insulation flame retardant cover of cabinet consist of low thermal
conductivity interlayer flame retardant material, satisfied the spare parts
site assembly, the level of protection is IP55. The outdoor all-in-one cabinet
compartment use air-conditioning and heat exchanger to proceed the heat
exchange.

Characteristics of Production
The distribution of inner space is rational and the structure is compact.
Cabinet has special central facilities area, distributing district, battery
area, distribution area, wiring area;
The door with the waterproof in front and back is openable, the theft-proof and
damage resistance can achieve B level of the GA/T73-1994;
Design double cabinets both inside and outside, material of isolation layer is
superior thermal insulating material which can achieve the temperature
variations between inside and outside above -5℃;
Three radiating mode can be selected: fan mode, heat exchange mode, air-
conditioning mode;
Particular appearance design, the cover is solid to prevent accumulation of the
rain; meet the standards of 19" standard, the metric system standard, ETSI
standard (European Telecommunications Standards Institute standard),
GB/T3047.22-92 standard.

Jiancheng outdoor server cabinet Technical Parameters
Range of operating temperature: -40℃~+50℃;
Range of storage temperature:-25℃~+55℃;
Range of transport temperature:-45℃~+70℃;
Requirement of relative humidity: 5℃~100℃;
Atmospheric pressure: 62kpa-101kpa(approximate to altitude of 0m-5000m);
Solar radiation intensity: total radiation intensity 1120×(1±10%)W/㎡
Model W*D*H Capacity Radiating mode
1018000 1100×1000×1650 24U Fan mode
1018300 1100×925×1650 24U Heat exchange mode
1018700 1100×925×1650 24U Air-conditioning mode

Heat exchange
Mode Fan mode
Air-conditioner mode

Jiancheng is a data center manufacturer, which can customize the parameters and
models of idc micro module. We also provide OEM and ODM full set of outdoor
data cabinet solutions.
