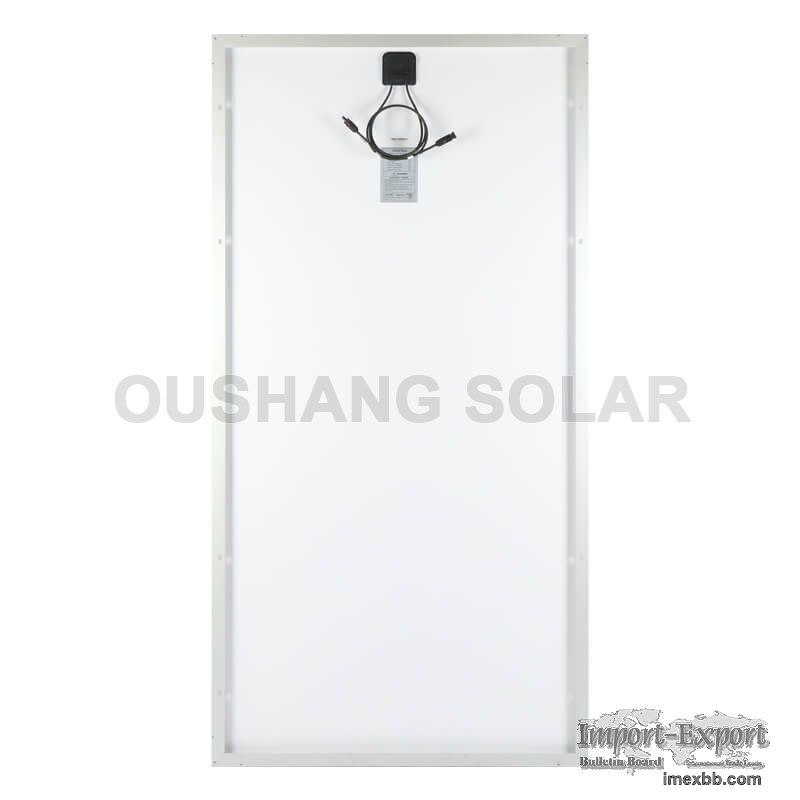

OS-P72-300W~315W Polycrystalline Photovoltaic Panel

OS-P72-300W~315W Polycrystalline Photovoltaic Panel PV modules from China
poly solar panel supplier

Product Description
Key Parameters
Cell Poly
No. of cells 72
Rated Maximum Power (Pmax)  300W~315W
Junction Box IP67
Maximum System Voltage 1000V DC
Operating Temperature -40℃～+85℃
Connectors  MC4

Model OS-P72-300 OS-P72-310 OS-P72-315
Cell POLY POLY POLY
Max Power 300W 310W 315W
Max Power Voltage 36V 36.5V 36.8V
Max Power Current 8.33A 8.49A 8.56A
Open Circuit Voltage 43.2V 43.5V 43.8V
Short Circuit Current 8.83A 8.92A 9.07A
Number of Cells 72(6*12) 72(6*12) 72(6*12)
Size of Cells (mm) 156*156 156*156 156*156
Dimensions(mm) 1955*992*35 1955*992*35 1955*992*35
Maximum system voltage 1000VDC
Junction Box Protection IP67
Cables 4mm2
Connector MC4
Max wind load 2400Pa
Max snow load  5400Pa
Operating Temperature -40℃~+85℃
Power Tolerance ±3%

Hebei Oushang Photovoltaic Technology Co., Ltd has focus on solar panel
production  since 2014. Our factory is a professional PV modules manufacturer
in China. We have shipped thousands of containers of solar panels to all over
the world. Our products are all working well under different sunshine
conditions.

FAQ
Question: Is your company manufacturer or trade company?
Answer: Manufacturer.

Question: Is sample order available?
Answer: Yes.

Question: Is OEM and ODM available?
Answer: Yes.

Question: What is your production lead time?
Answer: Around 2~3 weeks.

OUSHANG SOLAR has engaged R&D, production and sales of solar module products
many years. The power range of our solar panels is from 5W to 500W. Products
cover monocrystalline solar panel, polycrystalline solar panel, half cell solar
modules, solar controller, solar inverter, solar gel battery, solar flood
light, solar street light, solar monitor system and etc. We offer OEM service.
