Orignal Seiko 508GS 12PL Water Base Printhead - IRH2533U-1420

Original and New 12PL SEI KO SPT 508gGS eco solvent Printhead Blue label for infiniti phaeton printer
Seiko spt 508GS print head new and original Blue Label

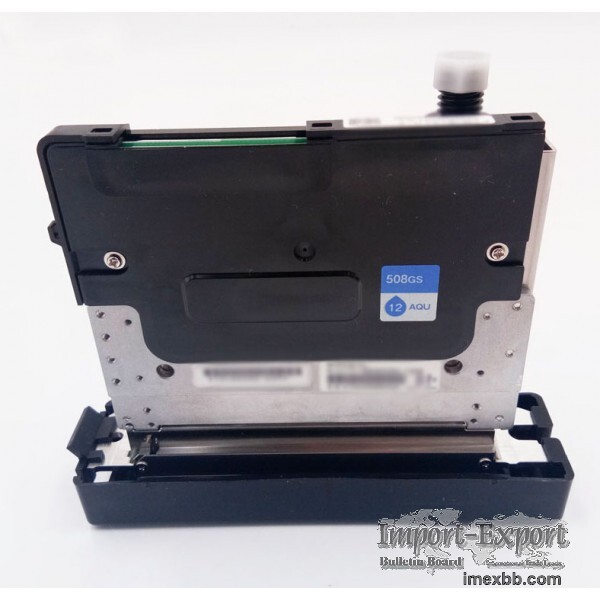

Orignal Seiko 508GS 12PL Water Base Printhead - IRH2533U-1420

This Seiko 508GS 12PL water printhead is suitable for a range of printers, including Infiniti printers. The Seiko 508GS is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IRH2533U-1420).

Product Specifications

Active Print Width: 72mm
Nozzles: 508
Nozzle Plate: Non-Wetting
Physical resolution: 180 dpi
Firing Frequency: 18 kHz (and multiples)
Drop Volume: multiple of 12pl (up to 7 drops)
Ink type: Aqueous


Model SPT-508GS 12PL
Number of Nozzles 508
Native Resolution 180dpi
Max Resolution 720dpi
Printhead Width 71.8mm
Drop Size 12pl
Firing frequency 11/17.4Khz
Type of Ink Solvent/UV
Place of Origin Japan

Minimum Order: 1 pieces
