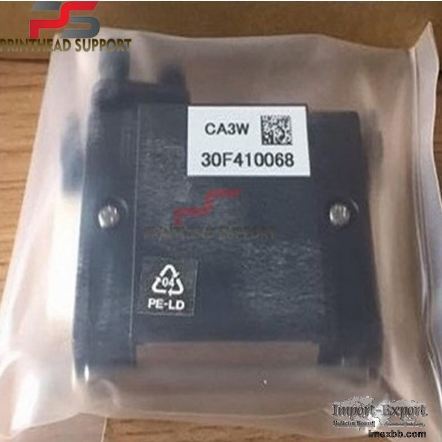

ORIGINAL TOSHIBA CA3W PRINTHEAD UV

Price :$624.00 (Tax included)
The Toshiba TEC CA3W is suitable for UV curable and Oil based inks, has 2
ink inlet ports (which can be easily removed to be replaced with a 1 ink
inlet assembly) and a chassis which provides a built-in water channel and
complete sealing designed for easy temperature control.
The Toshiba TEC CA3W is suitable for UV curable and Oil based inks, has 2
ink inlet ports (which can be easily removed to be replaced with a 1 ink
inlet assembly) and a chassis which provides a built-in water channel and
complete sealing designed for easy temperature control.

Specifications :

Technology: On Demand Piezo Electric
Max. Resolution: 1200 dpi
Droplet Size: 6 to 42 pico litre
Maximum Grayscale Levels: 8
Tot. Amount of Nozzles: 318
Nozzle Spacing: 169 microns
Firing Frequency: 13.8 kHz (1 drop) - 2.8 kHz (15 drops)
Driving Voltage: 14 - 28 V
Ink Compatibility: Oil Based pigment ink and uv ink

Minimum Order: 1 pieces
