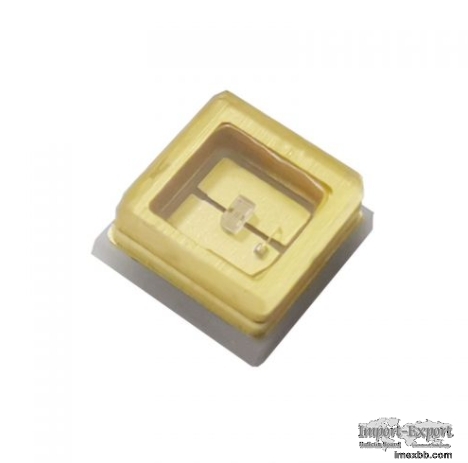

Original Stanley UVC LED Chip 275nm

Original Stanley UVC LED Chip 275nm
RoHS Compliance Japan Stanley 275nm Ultra Violet SMD LED
UVC chip 275nm, UVC LED

Due to the global outbreak of COVID-19, the people's demand for anti-epidemic
and sterilization of anti-virus products has risen, ranging from portable
sterilization equipment, home appliances sterilization, and public health
sterilization. With the rise of environmental awareness and in response to the
Minamata Convention, UV lamps containing mercury will gradually be replaced by
LEDs. In the future, in the post-epidemic era, UVC LED products will continue
to grow steadily in the sterilization, and purification and water treatment
markets.
Moonleds provide complete UVC series products and customized services. We have
developed and completed various power packages for 275 nm UVC, including 3535,
3939 & 6868 products, and the emission power after packaging is between 3~120
mW, and can be matched with different optical designs to achieve the best
sterilization effect.
The third-party unit test report shows that the sterilization effect can be as
high as 99.99% in the application of water sterilization and air sterilization.

Product Features

• UVC chip 275nm, UVC LED
• Ceramic package with integrated quartz glass cover
• Original packaging from Japan Stanley Electric
• Environmentally friendly, UVC LEDs do not contain mercury
• Healthy light source, short-wave UVC light does not reach the surrounding
area, do not pose risk to people
• Flexible and compact design, small footprint and DC operating
• No pre-heating necessary, instantly providing full optical output
• Robust and insensitive to external shocks
• Applied for UV-C Air Disinfection/UV-C Surface Disinfection/UV-C Water
Disinfection
Smoke/Dust/Particle Sensing
Curing applications
Treatment in the chemical industry

Deep UV 3535 UV-C LED Specification

Color Wavelength
(nm) VF
(V) IF
(mA) Optical Power
(mW) Beam Angle(°) Part Number
UVC 270-280 4.0-6.5 50 6-8mW 120 MN-S35UVCST275
