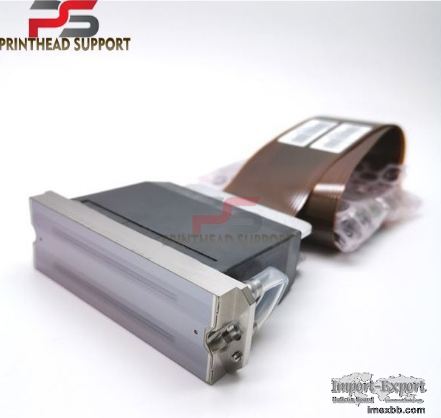

Original Ricoh GEN5 MH5421F Printhead

Price :$1,144.00 (Tax included)
This Ricoh Printhead Offers High-Resolution Printing And Support For
Multiple Ink Colours With Multi-Row Nozzles, As Well As Enhanced Aqueous
Ink Compatibility With New Bonding Technology.
SKU: PPHRI18047
Manufacturer Part Number: MH5421F
This MH5421F Ricoh printhead offers high-resolution printing and support
for multiple ink colors with multi-row nozzles, as well as enhanced aqueous
ink compatibility with new bonding technology.

The following items are expressly excluded from warranty coverage: defects
in printers related, in any way, to the use of any non-original or DIGINK
inks or ink cartridges and nozzle clogging defects related to misuse,
abuse, accident, neglect, lack of use, or improper storage when not in use
for extended periods defects related to failure to perform periodic
maintenance as specified in the user documentation; operation for
unintended purposes defects related to improper loading of media all other
defects, failures or damage not considered manufacturing defects defects
related to third-party applications, software, parts, components, or
peripheral devices, including any bulk ink system.defects that are merely
cosmetic in nature.



Product Specifications

Max. number of color inks: 2 colors
Print width: 54.1mm
Compatible ink: aquaeous ink
Nozzle spacing: 1/150" (0.1693mm)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles (1280)
Nozzle spacing: 0.1693 mm
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 50° C
Drop volume: 7/14/21 pl (depending on the ink)
Jetting frequency: 30 kHZ
Viscosity range: 11mPa . s
Gray-scale: 4 levels (depending on the ink characteristics)
Total length: 248mm (cable length: 179mm)
Dimensions: 89 x 25 x 69 mm (excluding cables)
Weight: 155g
This printhead carries a manufacturer warranty. Country of origin : Japan

Minimum Order: 1 pieces
