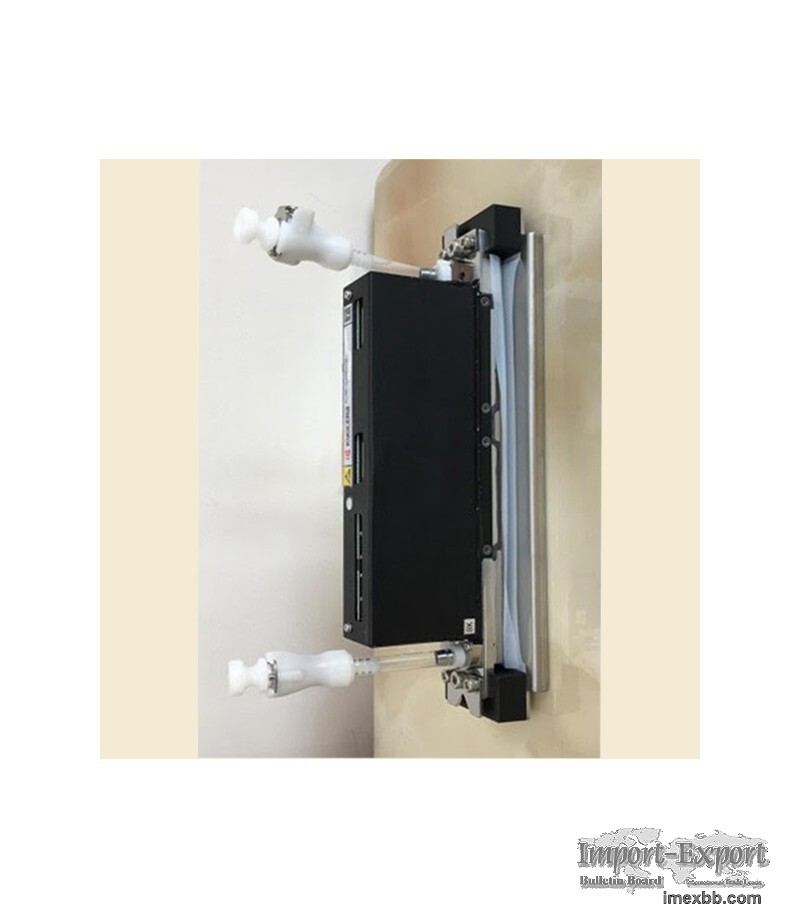

Original Kyocera Water Printhead KJ4B-YH Kyocera Print Head

Kyocera Water Printhead KJ4B-YH Kyocera Print Head

This Kyocera KJ4B-YH is designed for high speed printing of water-based inks. It is a 600dpi one colour printhead with a maximum drive frequency of 40kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

The Kyocera KJ4B-YH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures.

Specifications :

Ink Type: Aqueous Ink
Dimensions: 200 × 30 × 60.9mm
Dry Weight: 438g
Total Nozzles: 2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600 dpi
Print Width: 108.25mm
Max. Drive Frequency: 40kHz
Drop Volume: 5, 7, 12 pl
Max. Sprint Speed: 100m/min
Optimum Ink viscosity: 5.0 - 6.0 mPa*s

Minimum Order: 1 pieces
