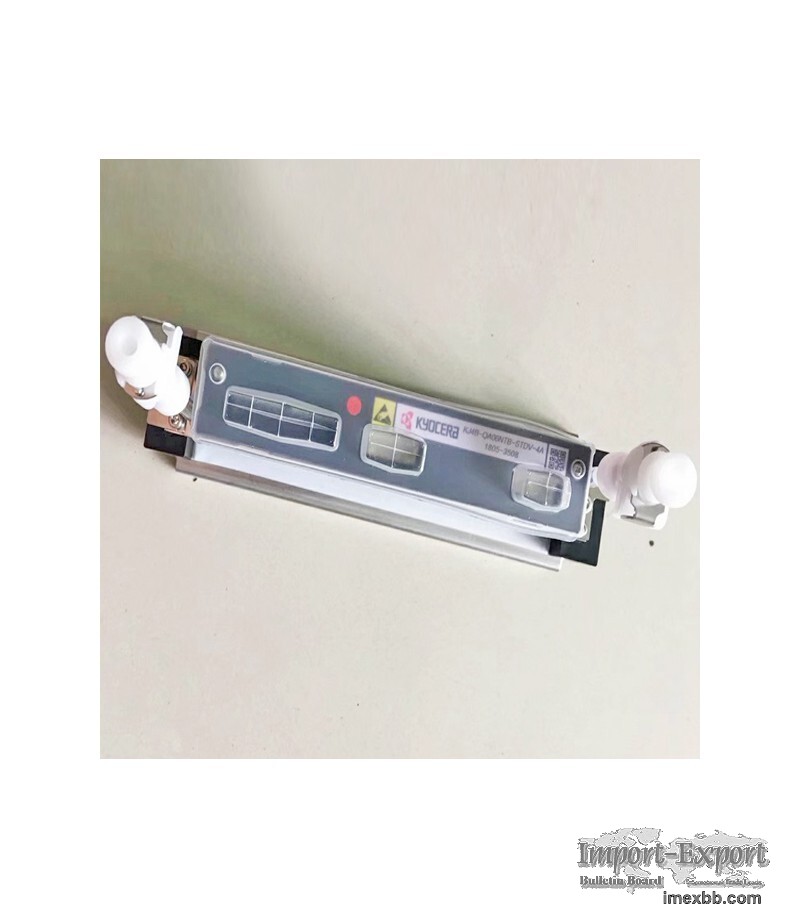

Original Kyocera Inkjet Printhead KJ4B-0300-G Kyocera Print Head

Kyocera Inkjet Printhead KJ4B-0300-G Kyocera Print Head

This Kyocera KJ4B-0300 G type is designed for high speed single-pass applications with printers using aqueous ink. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 120 m/min by making use of 2,656 nozzles arranged across 112 mm wide print swathe.

Specifications :

Ink Type: Aqueous Ink
Dimensions: 200 × 36 × 68.5mm
Dry Weight: 540g
Total Nozzles:2.656
Standard Resolution: 300 x 300dpi
Print Width: 112mm
Max. Drive Frequency: 30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed: 120m/min
Typical ink viscosity: 5.0-6.0 mPa

Printer compatibility :

Printerevolution T1800
Printerevolution T2600
Printerevolution T3200

FabriVu 340

Minimum Order: 1 pieces
