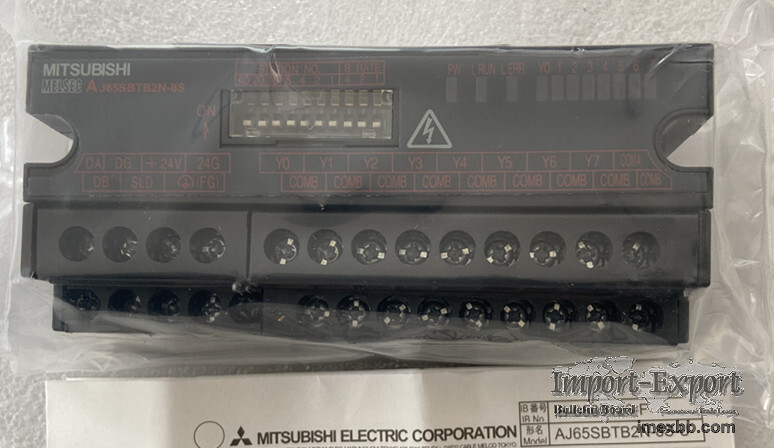

Organic Materials DC Motor Newest Mitsubishi Melsec AJ65SBTB2N-8S

A small remote I / O module used as a remote I / O station for control and
communication links (hereinafter referred to as "CC link"). Its features are as
follows:


(1) The small remote I / O module reduces the volume while maintaining all the
functions of the traditional module.

(2) More models of small remote I / O module series


Waterproof terminals are added to the small remote I / O module series for CC
link system. Along with the traditional terminal block type, there are also
quick connector type modules and FCN connectors

Type and connector type, now there are five models of products.

In addition to the traditional 16 point and 32 point remote I / O modules, an
8-point type is added, so that users can choose the most appropriate module
according to their own purpose and environment.

(3) The 4-wire small remote I / O module is easy to connect to the 4-wire
sensor.


It can be easily connected to the 4-wire sensor through the common pin provided
on each plug. It is not necessary to install relay terminal block.


For 4-wire small remote I / O modules, one sensor is connected to one plug.
Therefore, the sensor can be changed through the plug, reducing the operation
steps.

(4) The terminal block connection makes it easy to connect 2-wire and 3-wire
sensors or loads.

Because the terminal block connection allows the connection of 2-wire and 3-
wire sensors or loads, there is no need for a common connector, which makes the
connection easier.

(5) Minimize wiring

(a) Terminal block module

By using the self tightening screw on the terminal block, the wiring steps can
be significantly reduced.

(b) Quick connector module, connector module

The wiring steps can be significantly reduced by using the parallel wire
pressure wiring method (without welding, stripping the shielding layer and
screwing).

(c) FCN connector type module

Wiring steps can be significantly reduced by using 40 pin connectors for I / O
parts.

(6) Waterproof remote I / O module has improved waterproof and oil proof effect

The waterproof remote I / O module adopts a protective structure compatible
with IP67, which can be used more safely in the presence of water and oil.

(7) Up to 64 remote I / O modules can be connected

In CC link system, each master station can connect up to 64 remote I / O modul

Since each remote I / O module accounts for 32 points, a maximum of 2048 link
points can be set.

(8) The module can be replaced without stopping the CC link system

The dual block terminal block used for CC link cable connection can be used to
replace the module without stopping the operation of CC link system.

(9) It can be installed directly on the machine

The terminal block type remote I / O module can be installed directly on the
machine because there is a live area protected by a finger guard in the area
above the terminal block.

(10) The module can be installed in 6 directions

Small remote I / O modules can be installed in 6 different directions. (there
are no restrictions on the installation direction.)

The module can also be installed with DIN rail.

(11) Transistor output module with improved protection function

Transistor output module in order to achieve better module protection ability,
as a standard model, its design adopts short-circuit protection, overload
protection, overheating protection and overvoltage protection.

Therefore, the reliability of PLC system has been further improved.

Minimum Order: 1 pieces
