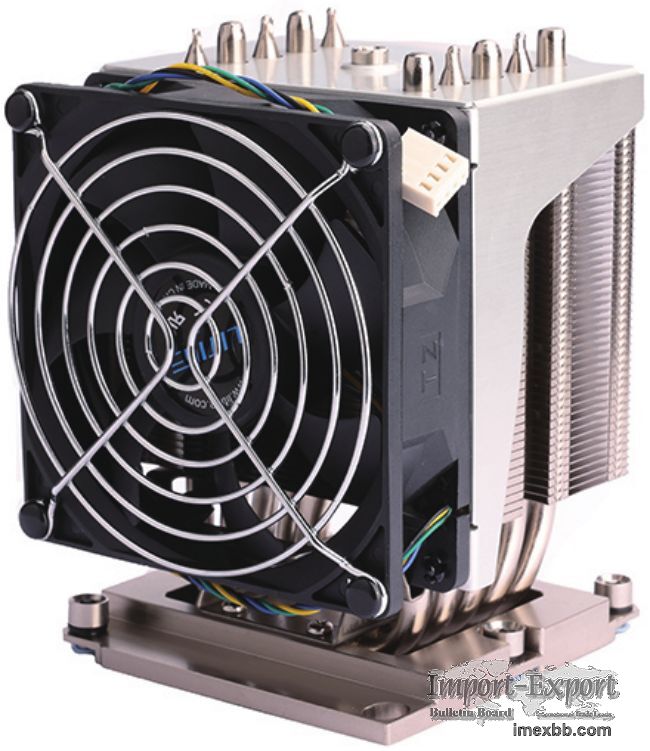

CPU coolserver W2
The CPU coolserver is a key component of the computer, ensuring stable
operation of the CPU.A popular cooling module is widely praised for its
innovative
design, efficient performance and affordable price.When purchasing, please
make
sure it is compatible with the CPU model and follow the installation
instructions
to ensureThe heat dissipation effect extends the service life of the
computer.
Small batch customization with quick proofing
》Efficient heat dissipation and intelligent temperature control.

》Compatibility and easy installation.

》Compatible with, and manufactured from highly thermally conductive

materials such as copper and aluminum.

》Durability and reliability.

》Seamless and perfect joint, no worries about leakage.
Model ：80803390 Processor architecture：Intel FCLGA 3647 Narrow ILM
Chassis architecture：4U Server and Up ( Active ) size：108.0 x 95.0 x
126.3 mm Power consumption：240W Material：AL Base + Cu Block +AL Fin +
5HP+ 9225 Fan Thermal paste：Shin-Etsu
X23-7783D Pre-Applied Fan model：TD9225B12UA Rated voltage：12 VDC
Starting voltage：7.0 VDC Rated current：1.0 A Rotating speed：4700±10%
RPM
Bearing：Two Ball Air volume：86.29CFM wind pressure：11.17 mm H2O noise：
36.6 dBA
PWM function：PWM Control Safety certification：UL & CE Environmental
protection level：RoHS 2.0 Plug terminal：2510 – 4Pin; Pin1,4

Minimum Order: 10 pieces
