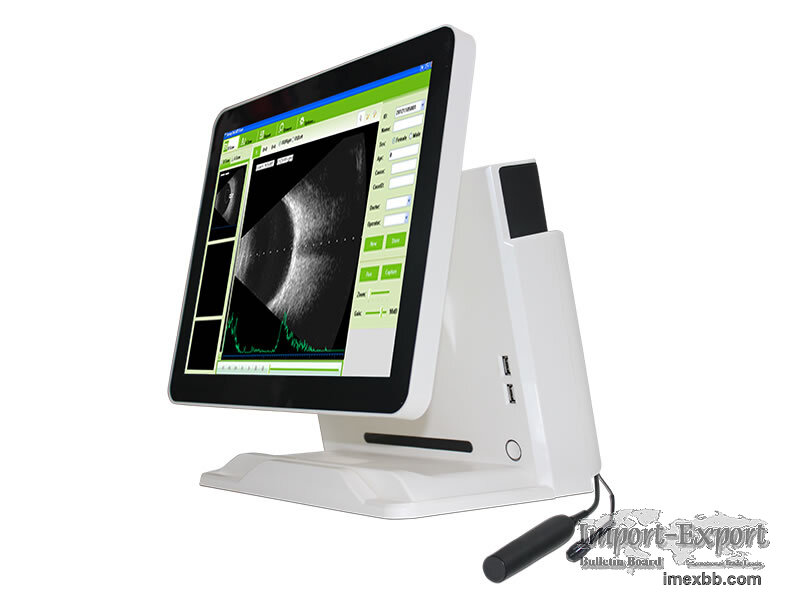

Ophthalmic A/B Ultrasound Scanner

SAB-500 A/B Scan with normal, vitreous body enhancement, retina observation
mode, mainly used for diagnosis of intraocular diseases, display the
location, shape range of the focus of infection and the relationship with
the surrounding tissue. Can be diagnosed vitreous opacity, retinal
detachment, eye base tumors etc. eye diseases. A scan is used to measure
anterior chamber depth, lens thickness, axial length, calculate diopter of
implant IOL as well.

B scan:
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify：Multi continuous magnification,Real-Time magnification
Resolution: Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision: Lateral ≤10%; Vertical≤5%
Depth:60mm
Enhance the part of vitreous body and retina
Gain of probe：30dB-105dB
Scanning Angle:53°
Gray Scale: 256
False Color: Multi colors. OCT
measurement type: multigroup distances, perimeters and areas
Image postprocessing: multiple curves processing, Pseudo-color processing
curve
Movies: 100 images movie review, AVI JPG format image output

A scan:
Frequency:10MHz, with LED
Depth: 40mm
Precision:±0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length,
total length and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
Others:
Display Mode :B, B+B, B+A, A
Hint: preset keyword
Case Search：Multi-keywords
Screen: 15 inch LCD
Built-in battery: can use 4 hours
User-defined report template poor credit secured loans

Minimum Order: 1 sets
