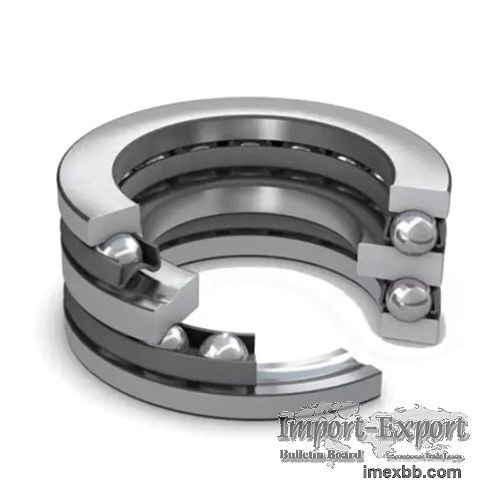

One-way Thrust Ball Bearings 51224

Unidirectional thrust ball bearings can accommodate axial loads in a single
direction. It cannot withstand any radial load. Its parts are separable, making
it easy to install and dismantle as well as for maintenance checks. Most parts
are interchangeable. The inner bore of the shaft washer is ground to achieve an
interference fit with the shaft.
The separable design facilitates installation and dismantling as well as
maintenance checks
Replaceable parts
The inner bore of the shaft washer is ground to achieve an interference fit
with the shaft
size
Inner diameter 120 mm
Outer diameter 170 mm
Thickness 39 mm
performance
The basic dynamic load rating is 127 kN
The basic static load rating is 390 kN
The reference speed is 1 600 r/min
