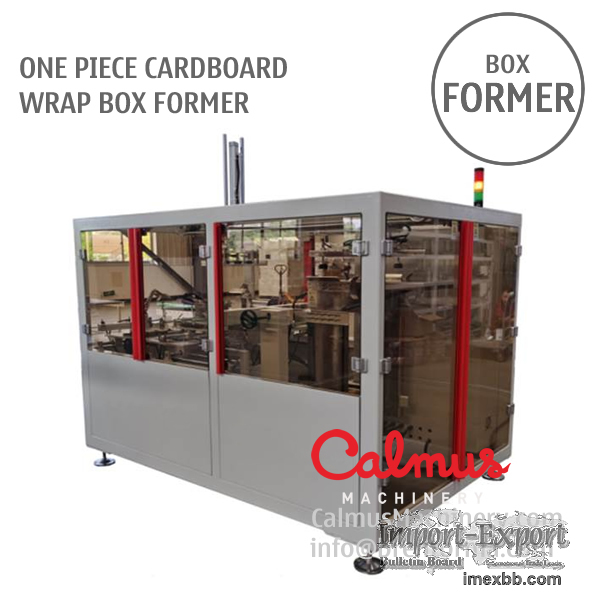

One Piece Cardboard Wrap Box Former

One piece cardboard wrap box forming machine. This wrap box former picks one-piece
die-cut cardboards from the storage tray, delivers them to be shaped with a punch
in a cave, folds and seals edges with hot melt glue.

Specifications:
Forming capacity: 10 boxes/min for 10L
Applicable carton size: L150-350*W150-300*H26-65mm
Feed material: one-piece die-cut cardboards
Power: single-phase 220-240V/110-120V or customized, 1.5 kW
Compressed air: 6-7 bar
Air consumption: 100 NL/min
Dimensions: L1,900*W1,400*H700mm (subject to the final approval)

Minimum Order: 1 sets

Click to Enlarge
