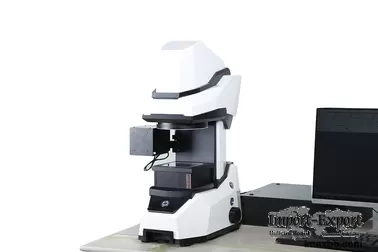

One Button Vision Measuring Machine With Double Telecentric High - Resoluti

Product Description
High-quality One-button Measuring Instrument Vision measuring machine easy
Measuring Factory

OMQ100 series one-button measuring instrument with double telecentric high-
resolution optical lens, combined with high-precision image analysis algorithm,
and integrated into the one-button flash measurement principle. The instrument
can automatically locate the measuring object, match the template, measure
evaluation and report generation according to the shape of the workpiece. It
only needs to touch the start key to realize the one-button fast and accurate
measurement.



text:center; text:center;


Product Advantages

Traditional measuring instruments, such as projectors, image measuring
instruments, tool microscopes, profilers, vernier calipers, micrometers, etc.,
are facing many problems in measurement, such as the time-consuming positioning
of measuring objects, origin positioning, long batch operation time, different
surveyors lead to different measurement results, complicated data statistics
management, etc.

OMQ100 series of one-button measuring instruments will solve the difficult
problems of traditional measuring instruments in detection. Their advantages
are as follows:


● Automatic Matching
The same category of products are programmed once, stored permanently, and
automatically matched when measuring.
● Automatic measurement
It can cooperate with the manipulator arm to realize automatic measurement.
● Simple calibration
Only one functional calibration key is needed to ensure the measurement
accuracy by multi-angle, omnidirectional and full-field calibration.
● Easy to use
Humanized and intelligent software design, without too much user operation,
easy to learn, easy to use, easy to use;
● Measuring function
Two-dimensional measurement of point, line, circle, arc, angle, distance
between point and line, distance between line and circle, etc.
● Data auto-saving
The results of measurement are automatically saved to the computer, including
the date of measurement, batch number of products and other information.
● Contour Scanning
Scan contour quickly and export DXF file.





Measurement Software

Software Interface








Measurement mode

The measurement mode is divided into single workpiece measurement and multi-
workpiece measurement, which can automatically search the set measurement
template with one key and quickly and accurately measure the batch.
