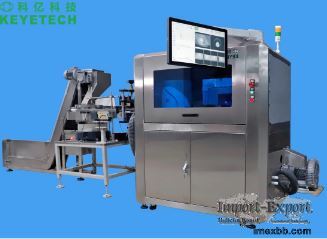

Omnidirectional Empty Bottle Inspection Machine System For 52mm~60mm Cap

Current status of pharmaceutical packaging

With the implementation of the United Nations World Health Organization, new
requirements have been put forward for the hardware equipment of pharmaceutical
companies, which has resulted in the growth of a number of pharmaceutical
equipment companies and an opportunity for the upgrading of the pharmaceutical
packaging material industry. Compared with developed countries, there is still
a considerable gap in pharmaceutical packaging in many regions. Therefore, weak
independent innovation ability and product quality are problems that the
packaging industry is facing.



Detection principle

The design plan for our company is equipped with 6 sets of 200W pixel black and
white industrial cameras, a cap organize machine to realize a full range of
defect detection on the concave, trademark and side of the bottle caps. The
normal detection speed is 500 pieces per minute; The front part of the
detection machine can be equipped with a set of organize conveying equipment,
to pour the caps into the cap organize machine, and transport them stably and
orderly through the cap organize machine conveyor line through the industrial
camera photographing area, and transfer the high-pixel sample image to the
image processing software, to compare and analyze with the standardized model
to determine the concave surface of the bottle cap and the trademark surface,
whether there are unqualified products on the side, and controls the
corresponding pneumatic components to eliminate the defective products, and
finally collects qualified products.



The software sets the comparison standard for the samples, operators can
control the comparison precision and choose the precision standard that best
suits themselves, thereby controlling the defect rate. The counting function
can be performed after detecting the finished product, and the counting
accuracy is 100%. The equipment can operate for a full day of 7 x 24 hours.
