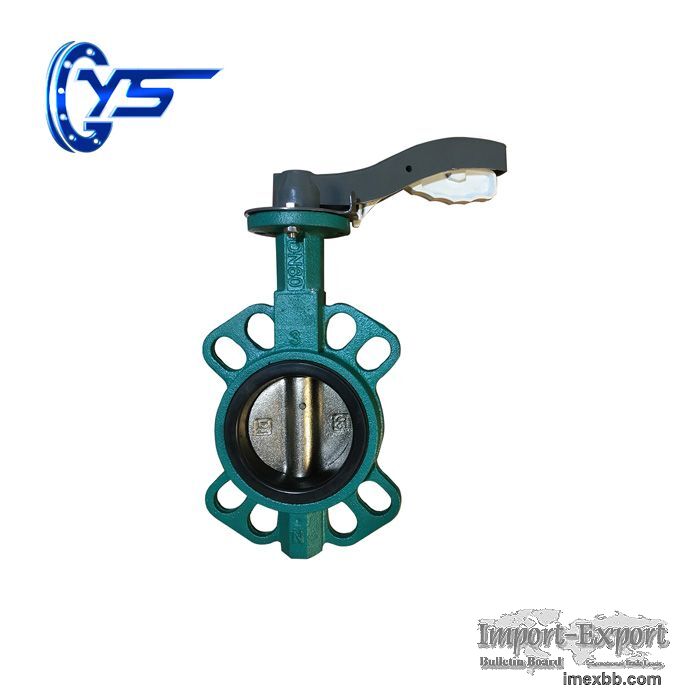

Oil And Gas Butterfly Valve Wafer type

Oil And Gas Butterfly Valve Wafer type Butterfly Valve manufacturer
Medium temperature: ≤80 ℃
Medium: oil, natural gas
Size: DN50-600
Pressure: 1.0-1.6mpa
Body Material: Ductile Iron
Connection method: Wafer type
Usage: The valve is mainly used to cut off the fluid it also can be designed to
have the function of adjusting
            or cutting off the fluid.

Butterfly Valve Details
Oil And Gas Butterfly Valve Main parts and materials
Parts name Material
Valve body Ductile iron
Butterfly Ductile iron/SS
Valve shaft Carbon steel
Sealing ring NBR

Oil And Gas Butterfly Valve Function and specification
Type Nominal
pressure
（mpa） Testing pressure（mpa） Suitable
temperature Suitable
medium
Strength
(Water) Enclose
(Water)
D71X-10 1.0  1.50  1.10  ≤80℃ oil,natural gas
D371X-10
D71X-16 1.6  2.40  1.80  ≤80℃ oil,natural gas
D371X-16

Oil And Gas Butterfly Valve Outline and connecting measurement
Type Nominal
DN(mm） Measurement（mm）
φ H L Z-φd
D71X-10/16 50 120 161 42 4-φ23
65 136.2 175 44.7 4-φ26.5
80 160 181 45.2 8-φ18
100 185 200 52.1 4-φ24.5
125 215 213 54.4 4-φ23
150 238 226 55.8 4-φ25
200 295 260 60.6 4-φ25

With many years’ export experiences, our DIN Gate Valve and two-piece ball
valve have been welcomed in international markets.
