Office Building Speed Gate Turnstile

PRODUCT DESCRIPTION
Latest Appearance Design Patent Speed Gate Pedestrian Management Turnstile



Please see product video in youtube link: https://youtu.be/Nl-ZSDA8pNg



Product Description



HPT Sirius series turnstile gate is one of the latested appearance design from HPT
Technology. Speed gate AG-TX68162302 is one of the fatest operation speed and
longest service life model.



It has sharp appearance and also has extrodinary performance when it is used in
different projects.



The gate applies brushless servo motor which allows it to operate with passage
width reaches 1200mm, acrylic wing height reaches 1600mm and MCBF larger than 100
Million times. The body of the speed gate also applies different surface treatment
to make its apperance more sophisticated. Part of the color treatment is stoving
and part is electroplating.



The LEDs and card reader cover are all private toolings HPT designed. According to
different projects, we also give customer advices to do customization on this gate.

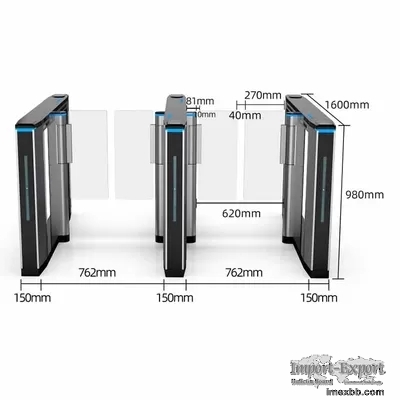

Specification



Product Size single wing:1600*231*980mm
dual wing: 1600*312*980mm
Material SUS 304 stainless steel + SPCC
Thinkness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 600mm (≤900mm optional)
Sensor 5 pairs of active infrared intrusion detector
Throughput Rate 40~60 p/m
Reaction Time 0.2S
Driving Voltage DC24V 6.25A
Working Temperature ·-20~+70℃
Power Input AC110~220V±10%
Motor Brushless Servo Motor
Acoustic Alarm Buzzer Alarm
LED Triple Color LED




Functionality



1, The gate can be integrated with different access control devices including RFID
reader, ID reader, face recognition device and fingerprinte recognition etc.

2, It is equipped with light and acoustic alarm when someone wants to break in
without authorization .

3, The system will automatically cancel the passing rights if visitor did not pass
within setting time.

3, If visitor was caught by the turnstile wings, the turnstile wings will open to
avoid people get hurt.

4, The turnstile is equipped with protection mechanism to protect its driving motor
and wings when someone bump into the turnstile arms.

5, The turnstile motherboard has fire protection port.





Customization Avaible

To do changes on gate appearance and settings or passage width to adapt to
different projects, or if you are looking for a OEM factory to realize your speed
gate design, you are always welcome.



Projects



This gate is specially designed for high end places like museum, exhibition hall,
hotel, campus, office building, residential community and parks etc.



Office Building Speed Gate Turnstile 0Office Building Speed Gate Turnstile 1



HPT Technology



Shenzhen HPT Intelligent Technology Co., Ltd is a high-tech enterprise integrated
R&D, production and sales of the turnstile and face recognition devices and system
located in shenzhen city, China
