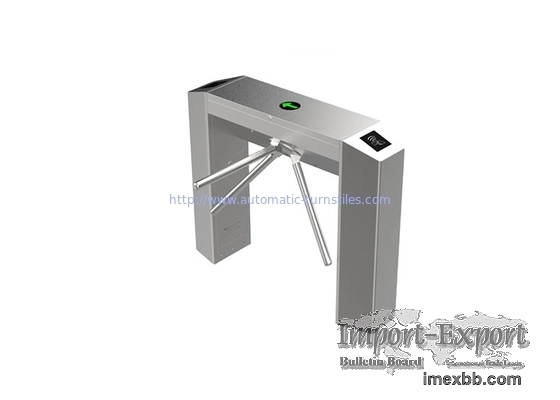

Office Building IP44 Solenoid Tripod Turnstile Gate 510mm Arm

PRODUCT DESCRIPTION
Office Building Bi-Directional Automatic Solenoid Tripod Turnstile Gate System​



Product description



Tripod turnstile series are intelligent passage management equipment
researched, developed and produced by our

company.The equipment is integrated with delicate mechanical transmission,
microprocessor control, and various

read/write techniques. It can be used for intelligent control and management of
the passage after equipped with

different read/write devices.



The outline of the product is formed after bending the stainless steel plate.
The shape is featured as pleasing appearance,

good looking, stainless and durable. The system is provided with a standard
electric interface and is easily integrated into

the equipment with read/write facilities such as magnetic card, bar code card,
ID card and IC card. As a result, an orderly

and civilized passage is provided for the personnel in and out, and illegal
personnel can be barred. At the same time, a special

fire control interface is equipped in the system to meet the requirement of
fire control passage, so that a rapid down rod control

may be realized in emergency for diverting passengers.





TECHNICIAL SPECIFICATIONS



PRODUCT INFORMATION
Model SN-TT02
Brand SINOMATIC
Size/Stick length 1200*280*980(mm)/free of case 510(mm)
Arm length 500mm(norm)
Material SUS304 thickness(1.2mm)
Input Voltage 110V/220V ±10%
Driving motor 24V
Failure-free operation 5 million/time
Weight 50kg
Traffic speed 30 persons/min
Flap Opening/Closing Time 0.2s
Channel width ≤600mm
Operating temperature -30℃—+70℃
Communication interface Dry contact
Working environment indoor and outdoor


MAIN FUNCTIONS AND FEATURES



1. Mechanical drive unit with solenoid locking mechanism eliminate the use of
expensive electric motor and

reduce maintenance cost.



2. If arm rotated more than half, it will auto-rotate to the next idle
position. If arm rotated less than half, it will

auto-rotate back to the current idle position.



3. Built in adjustable tensioner to control rotation force to minimize over
rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the
turnstile.



4.Turnstile can be configured to be bi-directional or uni-directional. Housing
is locked with special key to avoid

tampering.



5. Innovative and unique mounting surface ensures simple and convenient
installation for system integrator.



6. Can be used with variety of access control devices: IC / ID card readers,
bar-code scanner, fingerprints, etc.

(Access controller needed)



7. Automatic reset function. Should the user fail to pass within the prescribed
time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



8. The mechanism is equipped with an automatic regulated hydraulic buffer
device. There is no noise and impact

when running.



9. Auto-reposition function: After card read, passengers don't pass within
regulated time period, turnstile will be

locked automatically



10. When power off, arm will be dropped automatically



Office Building IP44 Solenoid Tripod Turnstile Gate 510mm Arm 0
